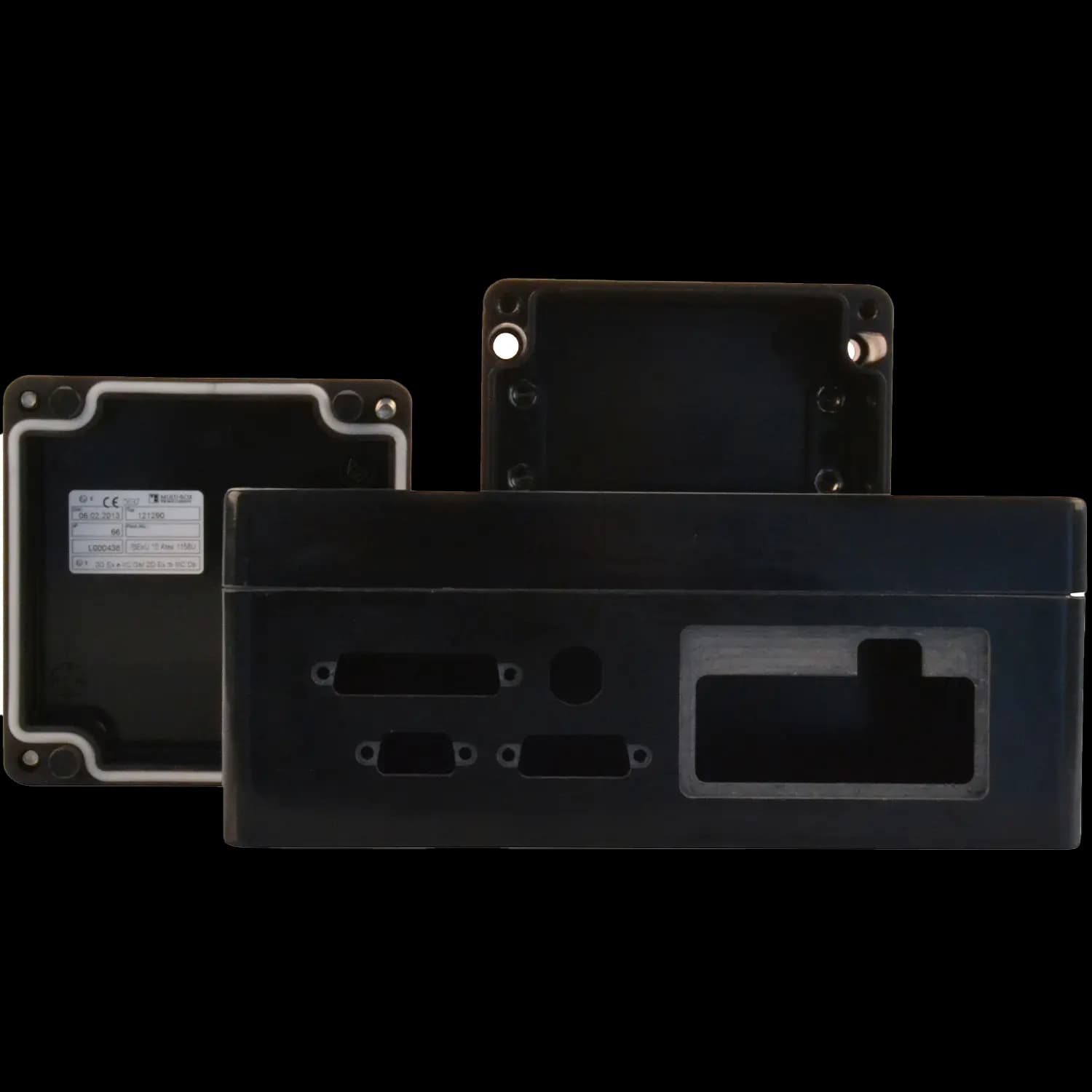

Ex Enclosures - Polyester-Ex empty Enclosures

MULTI-BOX MBP Polyester-Ex empty enclosures are conform to all instillation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22.

MBP-Ex empty U certified enclosures have a component certificate confirming the construction security for the additional components to be added. Therefore the registration and re-testing of the new product, after the fitting of additional components is considerably simplified, due to the already approved enclosure construction.

The MBP Ex empty enclosures have a U certification and therefore, after the installation of approved electrical and electrotechnical components into the enclosure, the complete unit should be retested with temperature characteristics included.


  • Categorisation: u
  • Zone classification: 1, 2, 21, 22
  • Operating temperature max. (°C): 100
  • Operating temperature min. (°C): -55
  • RAL-code cover: 9005
  • RAL-code base: 9005
  • Material cover: Polyester GRP
  • Material base: Polyester GRP
  • Material sealing: Silicone
  • Material screws: Stainless Steel V2 A
  • UV-resistant
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP : 66
  • Flame retardancy : V0
  • Captive cover screws

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
3211111350
MBP-Ex empty 221290
220 120 90
3211111250
MBP-Ex empty 161690
160 160 90
3211111450
MBP-Ex empty 261690
260 160 90
3211101550
MBP-Ex empty 361690
360 160 90
3211101950
MBP-Ex empty 561690
560 160 90
3211101660
MBP-Ex empty 252512
255 250 120
3211101760
MBP-Ex empty 402512
400 250 120
3211102050
MBP-Ex empty 602512
600 250 120
3211111150
MBP-Ex empty 121290
122 120 90
3211101850
MBP-Ex empty 404012
400 405 120
3211101770
MBP-Ex empty 402516
400 250 160
3211101670
MBP-Ex empty 252516
255 250 160
3211101050
MBP-Ex empty 237575
230 75 75
3211100950
MBP-Ex empty 237550
230 75 50
3211100850
MBP-Ex empty 197575
190 75 75
3211100750
MBP-Ex empty 197555
190 75 55
3211100650
MBP-Ex empty 167575
160 75 75
3211100550
MBP-Ex empty 167555
160 75 55
3211100450
MBP-Ex empty 117575
110 75 75
3211100370
MBP-Ex empty 117555
110 75 55
3211100360
MBP-Ex empty 117550
110 75 50
3211100250
MBP-Ex empty 807575
80 75 75
3211100150
MBP-Ex empty 807555
80 75 55
