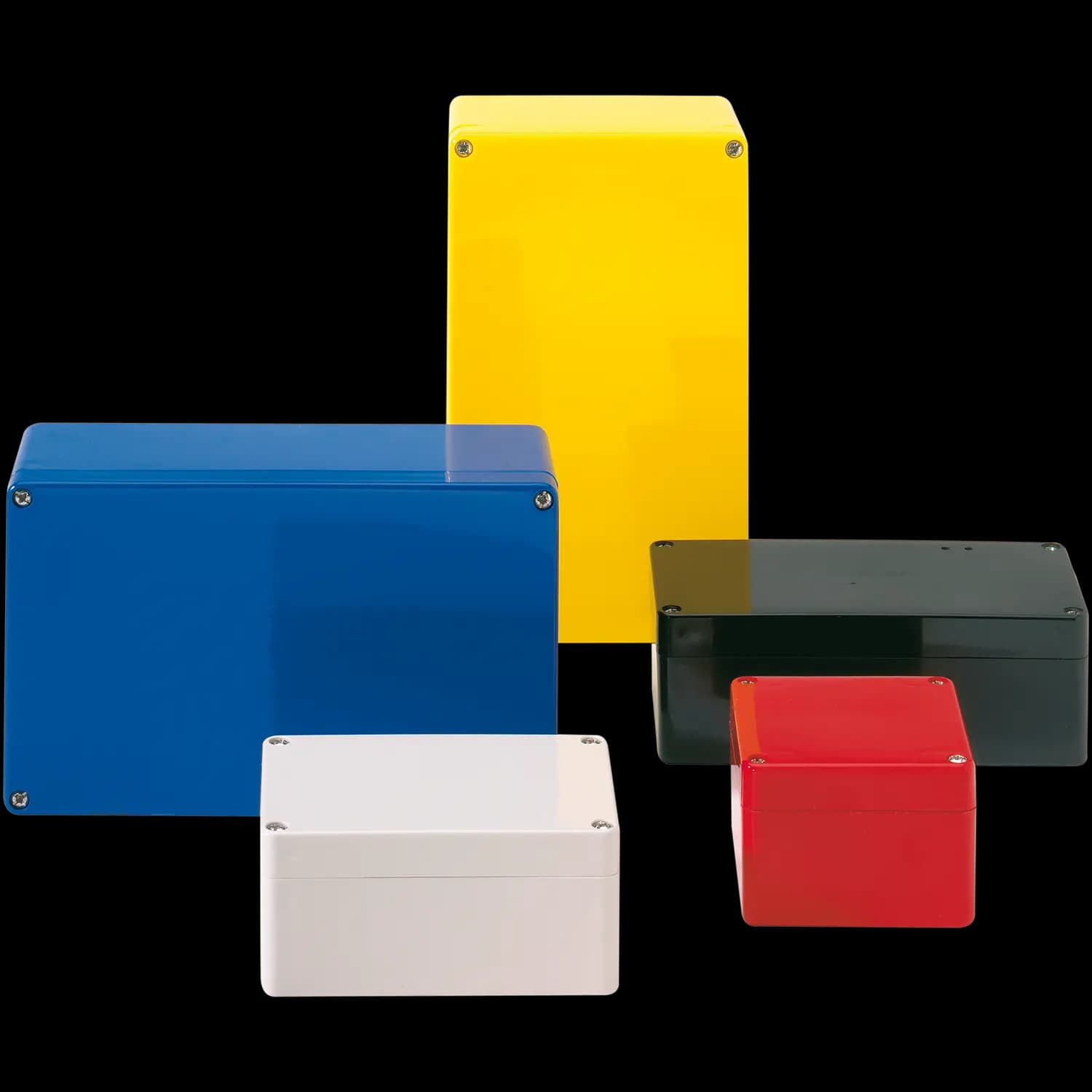

Plastic Enclosures - ABS-Enclosures / Multi-Colour

It doesn't always need to be grey!

With our Multi-Colour-Enclosures made of ABS, we offer the possibility of designing the colour of your products and visually upgrading them even for small quantities.

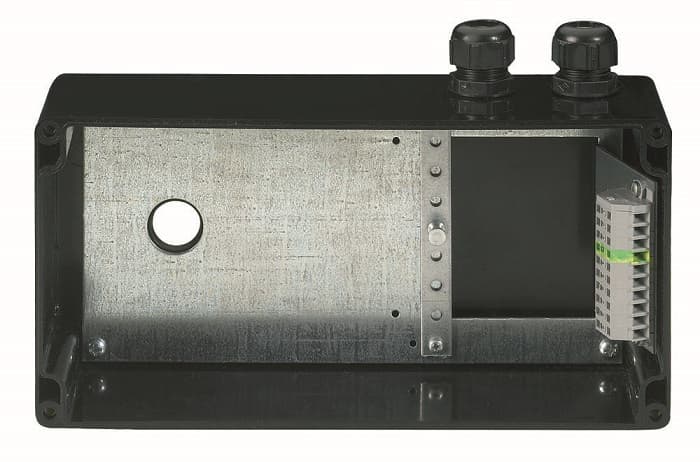

Multi-Colour-Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.

Our enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing or membrane keyboards.

The enclosures are available with a coloured or transparent cover (K).


  • Permanent operating temperature max. (°C): 80
  • Permanent operating temperature min. (°C): -40
  • Suitable for indoor use
  • Protection class IP : 65
  • Sealing foamed seamless
  • Captive cover screws

RAL 3020 / Red

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0401101030
MBT 080805
80 80 55
0401102130
MBT 128055
120 80 55
0401104240
MBT 121255
122 120 55
0401103530
MBT 168055
160 80 55
0401104930
MBT 161255
160 120 55
0401105930
MBT 201275
200 120 75


RAL 1023 / Yellow

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0401101020
MBT 080805
80 80 55
0401102120
MBT 128055
120 80 55
0401104230
MBT 121255
122 120 55
0401103550
MBT 168055
160 80 55
0401104920
MBT 161255
160 120 55
0401105920
MBT 201275
200 120 75


RAL 5017 / Blue

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0401101040
MBT 080805
80 80 55
0401102140
MBT 128055
120 80 55
0401104250
MBT 121255
122 120 55
0401103540
MBT 168055
160 80 55
0401104940
MBT 161255
160 120 55
0401105940
MBT 201275
200 120 75


RAL 9005 / Black

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0401101010
MBT 080805
80 80 55
0401102110
MBT 128055
120 80 55
0401104211
MBT 121255
122 120 55
0401103110
MBT 168055
160 80 55
0401104950
MBT 161255
160 120 55
0401105910
MBT 201275
200 120 75



Individuality is our standard
With our extensive machinery and a highly motivated team, we transform our standard products into your individual solution.
