Accessories - Hinged Window KLF

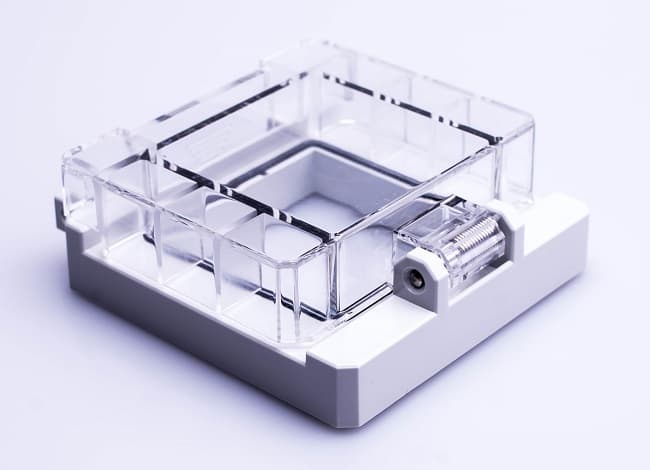

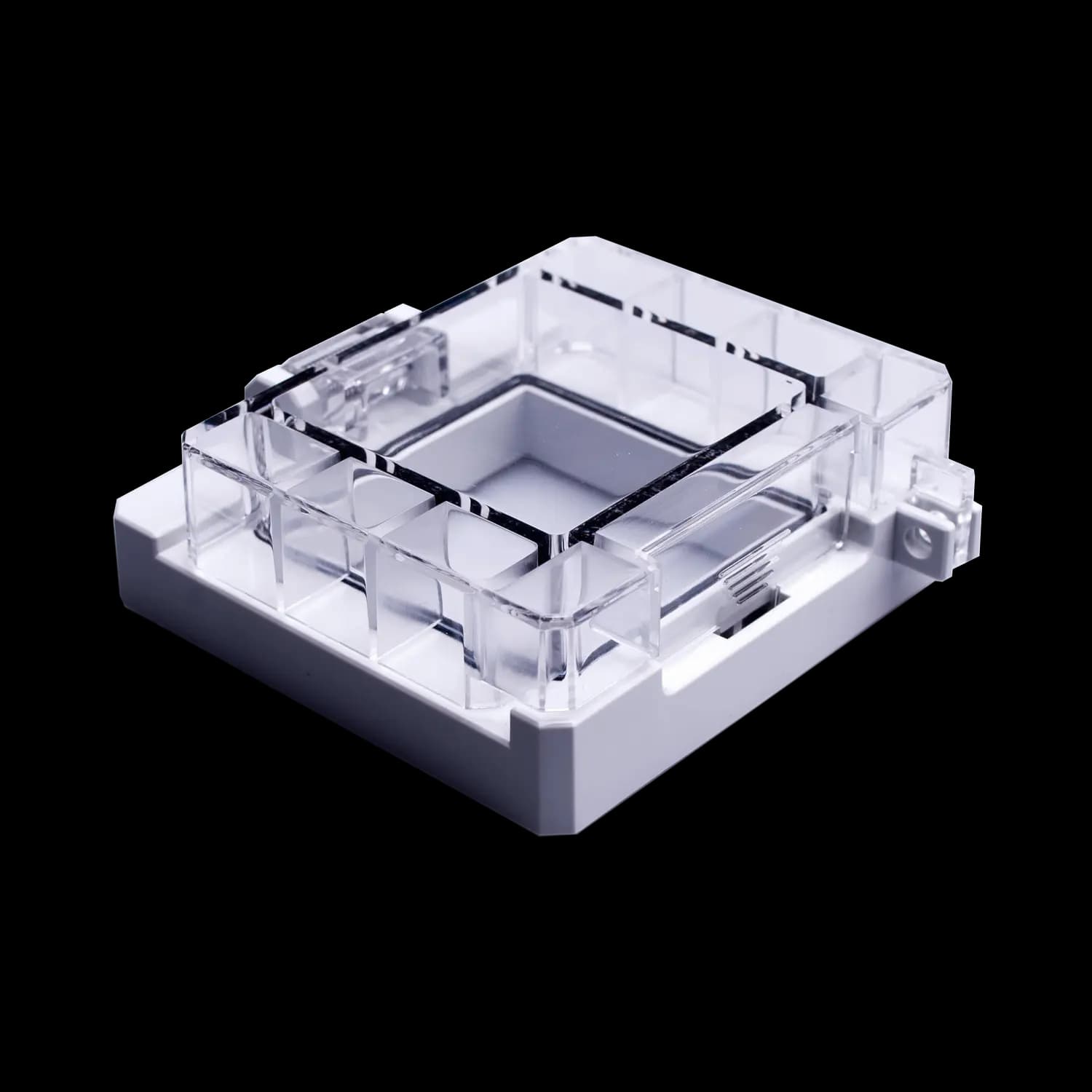

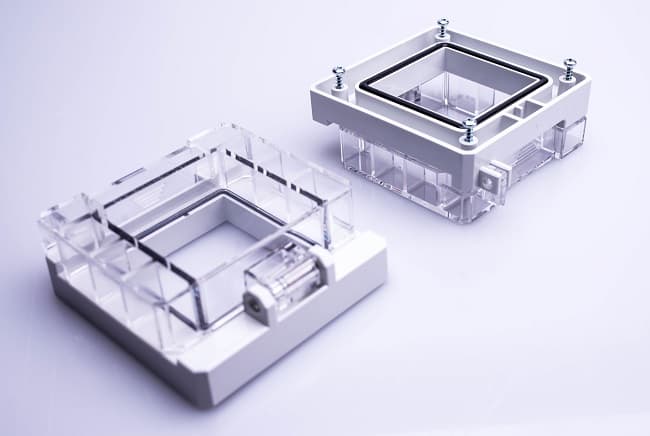

Universal installation window with clear lid, mounting frame and hinge function. Made of UV-resistant Polycarbonate. The product achieves protecion class IP65 through two foamed PU gaskets. Opening size cut out is 46x46 mm. Standard colour frame light grey RAL 7035. Special colours are available on request. Mounting screws are included.

  • Color description cover: Transparent
  • Color description frame: Light Grey
  • Permanent operating temperature max. (°C): 100
  • Permanent operating temperature min. (°C): -40
  • Protection class IP : 65
  • Flame retardancy : V2
  • Sealing foamed seamless
  • Special colours
  • Special materials

Length (mm) Width (mm) Height (mm)
KLF 080803
81 81 30
