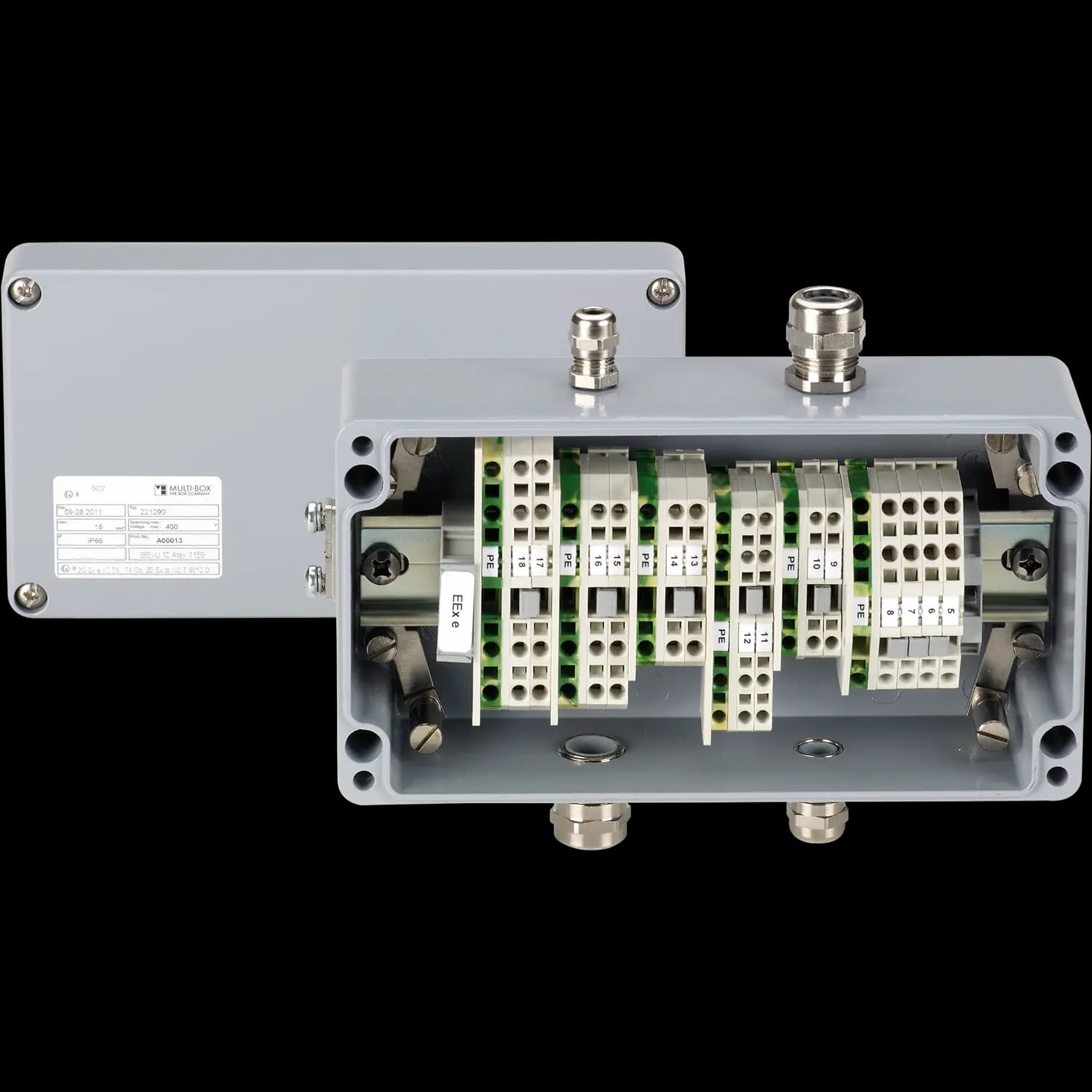

MULTI-BOX Aluminium-Ex e junction boxes are conform to all installation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22 and with temperature classes T4 to T6.

Temperature class 6 signifies that even in the case of assembled terminals, the maximum total temperature does not exceed 85°C, neither inside nor outside the enclosure, and therefore combustible gases and dust cannot be ignited. By the exterior earthing, the enclosures are included in the potential compensation. This completely avoids electrostatic charging and sparks resulting from it.

In certain cases, where the application or specification permits the combination of circuitry, the Ex-junction box with the protection type increased safety «e» can be combined with the intrinsically safe type «i», however the minimum clearance and creepage distance between the terminals of both power circuits must be 50 mm. Even in this case there is no heating of the intrinsically safe power circuit.


  • Categorisation: e
  • Zone classification: 1, 2, 21, 22
  • Temperature classes: T4, T5, T6
  • Operating temperature max. (°C): 85
  • Operating temperature min. (°C): -55
  • External earthing point
  • RAL-code cover: 7001
  • RAL-code base: 7001
  • Material cover: Aluminium
  • Material base: Aluminium
  • Material sealing: Silicone
  • Material screws: Stainless Steel V2 A
  • Surface coating: Powder coating
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP : 66
  • Earthing point available
  • Captive cover screws

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
3121100200
MBA-Ex e 606030
58 64 34
3121100400
MBA-Ex e 906030
98 64 35
3121100600
MBA-Ex e 156030
150 64 34
3121100900
MBA-Ex e 708055
75 80 57
3121101100
MBA-Ex e 128055
125 80 57
3121101300
MBA-Ex e 178055
175 80 57
3121101400
MBA-Ex e 258055
250 80 54
3121101600
MBA-Ex e 121265
122 120 65
3121101800
MBA-Ex e 121280
122 120 80
3121101900
MBA-Ex e 121290
122 120 90
3121102000
MBA-Ex e 221265
220 120 65
3121102200
MBA-Ex e 221280
220 120 80
3121102300
MBA-Ex e 221290
220 120 90
3121102400
MBA-Ex e 361280
360 122 80
3121102500
MBA-Ex e 161690
160 160 90
3121104000
MBA-Ex e 261665
260 160 65
3121102600
MBA-Ex e 261690
260 160 90
3121102800
MBA-Ex e 361690
360 160 90
3121029000
MBA-Ex e 561690
560 160 90
3121103000
MBA-Ex e 202311
200 230 110
3121103100
MBA-Ex e 282311
280 230 110
3121103202
MBA-Ex e 332311
330 230 110
3121103300
MBA-Ex e 332318
330 230 180
3121103400
MBA-Ex e 402311
400 230 110
3121103500
MBA-Ex e 403111
400 310 110
3121103600
MBA-Ex e 403118
400 310 180
3121103700
MBA-Ex e 602311
600 230 110
3121103800
MBA-Ex e 603111
600 310 110
3121103900
MBA-Ex e 603118
600 310 180
3121105500
MBA Ex-e 101080
100 100 80
3121104500
MBA Ex-e 141490
140 140 90
3121106500
MBA Ex-e 161080
160 100 80
3121106600
MBA Ex-e 201080
200 100 80
3121107500
MBA Ex-e 181490
180 140 90
3121108500
MBA Ex-e 201490
200 140 90
