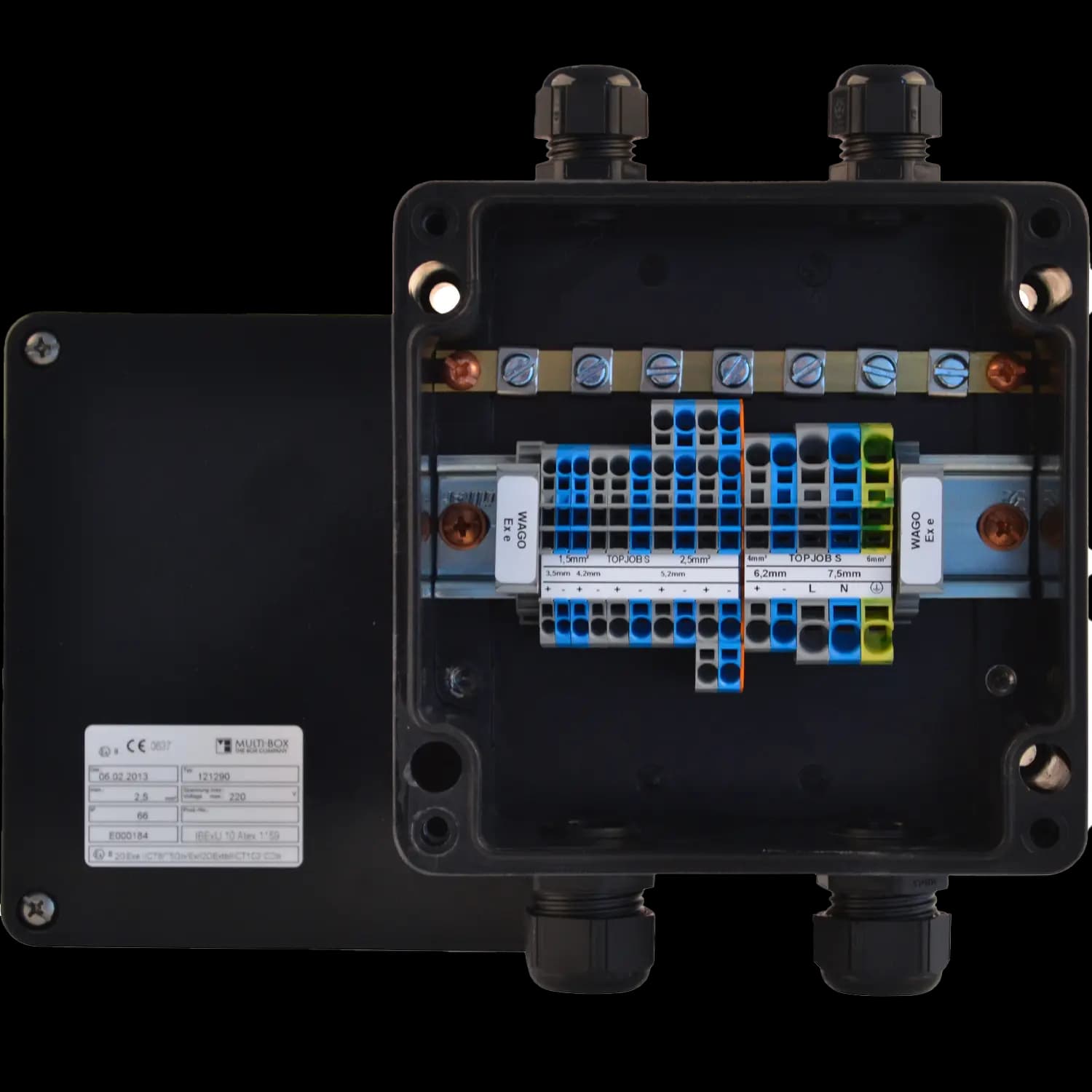

MULTI-BOX MBP-Ex e junction boxes made of Polyester are conform to all installation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22 and with temperature classes T5 to T6.

Temperature class 6 signifies that even in the case of assembled terminals, the maximum total temperature does not exceed 85°C, neither inside nor outside the enclosure, and therefore combustible gases and dust cannot be ignited. The graphite additive in the polyester material prevents static charge of the housing surface by the low surface resistance = <10 (high 9) ohms. This completely avoids electrostatic charging and sparks resulting from it.

In certain cases, where the application or specification permits the combination of circuitry, the Ex-junction box with the protection type increased safety «e» can be combined with the intrinsically safe type «i», however the minimum clearance and creepage distance between the terminals of both power circuits must be 50 mm. Even in this case there is no heating of the intrinsically safe power circuit.


  • Categorisation: e
  • Zone classification: 1, 2, 21, 22
  • Temperature classes: T5, T6
  • Operating temperature max. (°C): 85
  • Operating temperature min. (°C): -55
  • RAL-code cover: 9005
  • RAL-code base: 9005
  • Material cover: Polyester GRP
  • Material base: Polyester GRP
  • Material sealing: Silicone
  • Material screws: Stainless Steel V2 A
  • UV-resistant
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP : 66
  • Flame retardancy : V0
  • Captive cover screws

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
3221111350
MBP-Ex e 221290
220 120 90
3221111250
MBP-Ex e 161690
160 160 90
3221101450
MBP-Ex e 261690
260 160 90
3221101550
MBP-Ex e 361690
360 160 90
3221101950
MBP-Ex e 561690
560 160 90
3221101660
MBP-Ex e 252512
255 250 120
3221101760
MBP-Ex e 402512
400 250 120
3221102050
MBP-Ex e 602512
600 250 120
3221101850
MBP-Ex e 404012
400 405 120
3221101770
MBP-Ex e 402516
400 250 160
3221101670
MBP-Ex e 252516
255 250 160
3221111150
MBP-Ex e 121290
122 120 90
3221101050
MBP-Ex e 237575
230 75 75
3221100950
MBP-Ex e 237550
230 75 50
3221100850
MBP-Ex e 197575
190 75 75
3221100750
MBP-Ex e 197555
190 75 55
3221100650
MBP-Ex e 167575
160 75 75
3221100550
MBP-Ex e 167555
160 75 55
3221100450
MBP-Ex e 117575
110 75 75
3221100370
MBP-Ex e 117555
110 75 55
3221100360
MBP-Ex e 117550
110 75 50
3221100250
MBP-Ex e 807575
80 75 75
3221100150
MBP-Ex e 807555
80 75 55
