Aluminium-Enclosures MBA

Aluminium-Enclosures MBA

Material cover: Aluminium

Material base: Aluminium

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

Surface coating: Powder coating

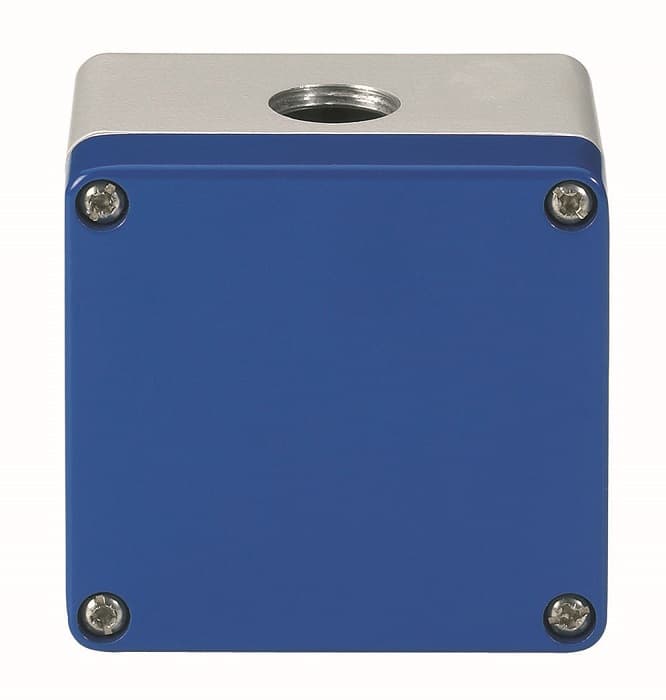

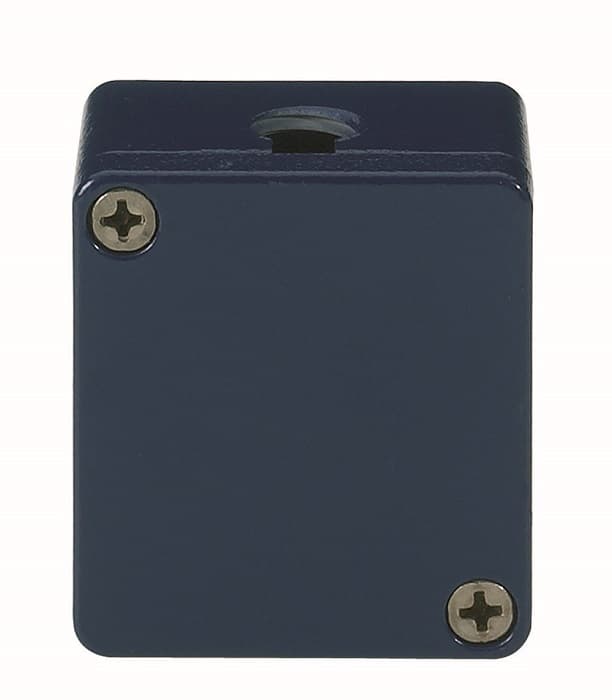

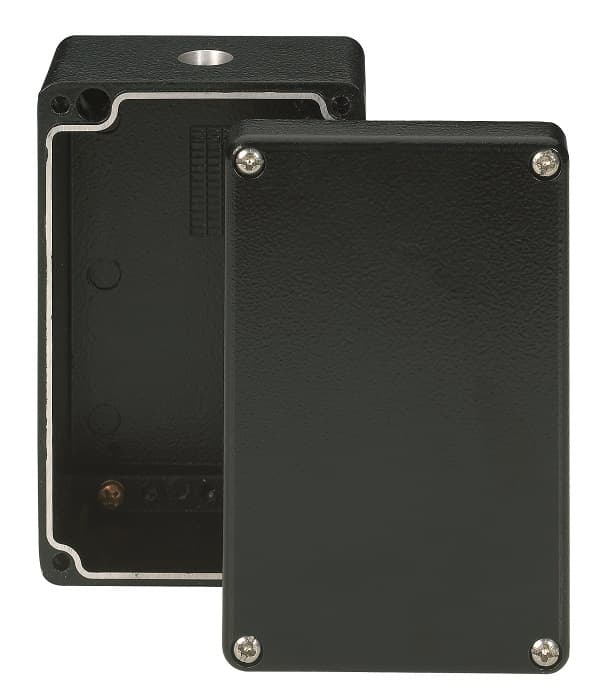

MBA-Enclosures are universal, sturdy and easily adapt to the installation of electrical, electronic and pneumatic components. Manufacturing takes place using pressure die casting or gravity die casting methods.

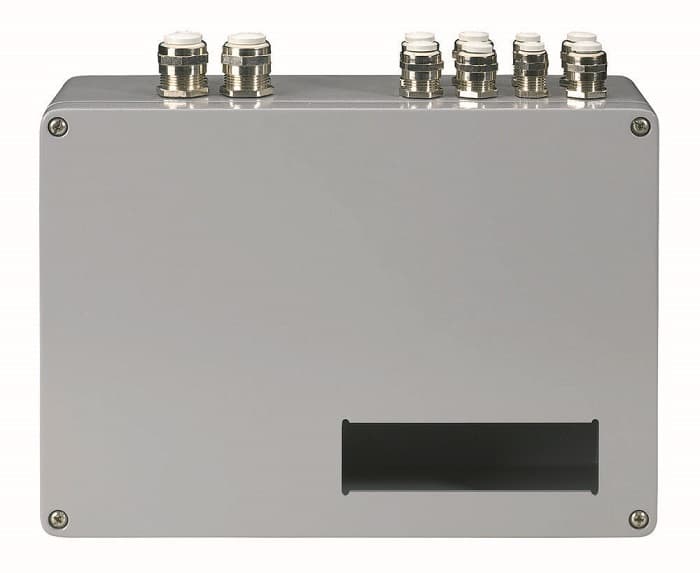

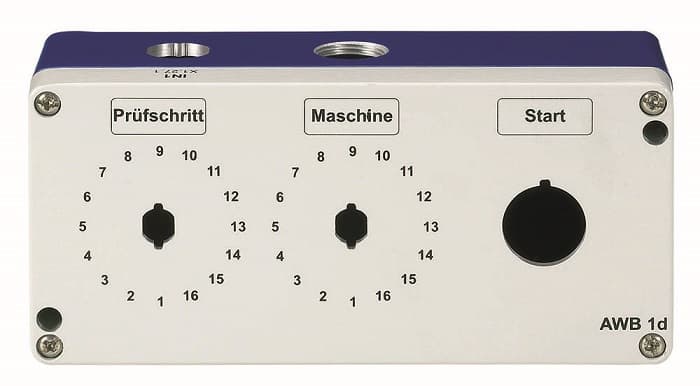

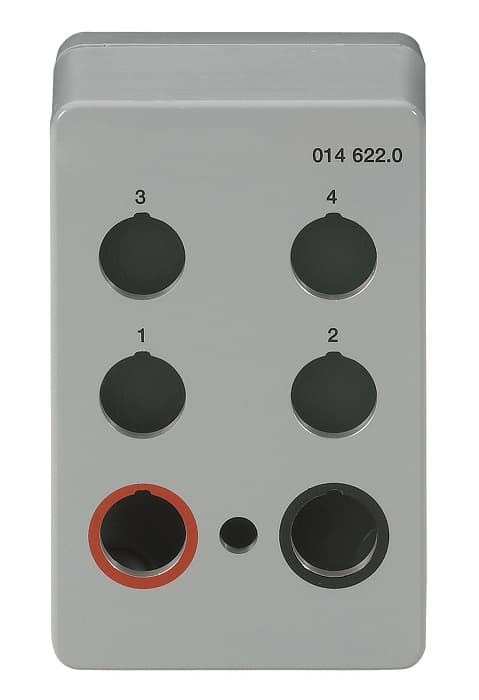

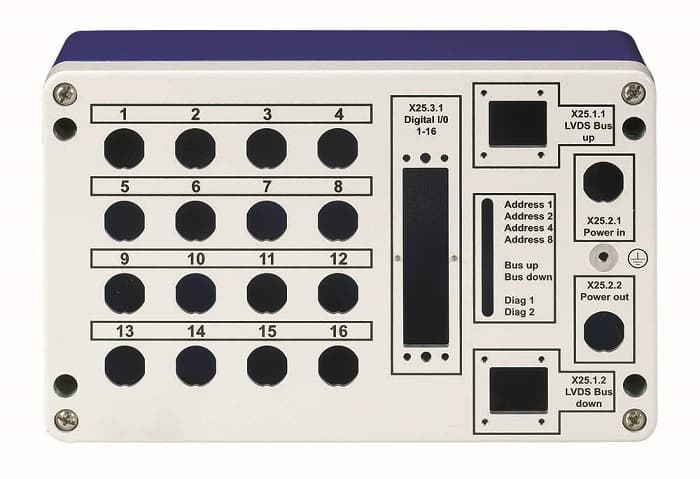

MBA-Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design.

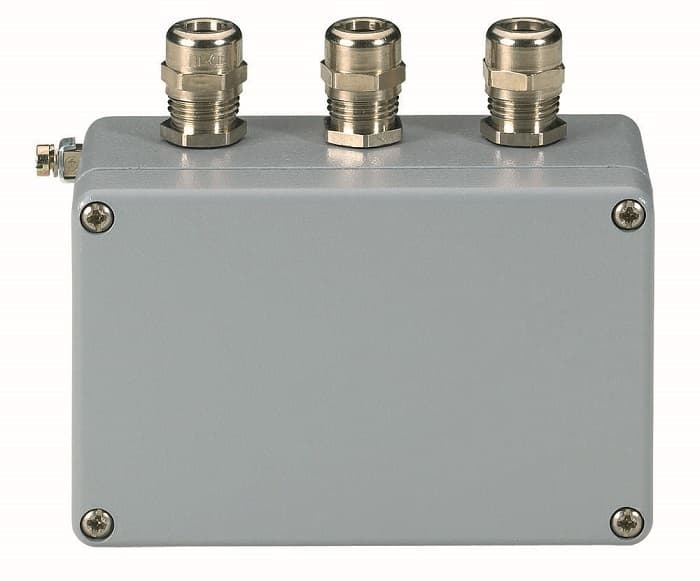

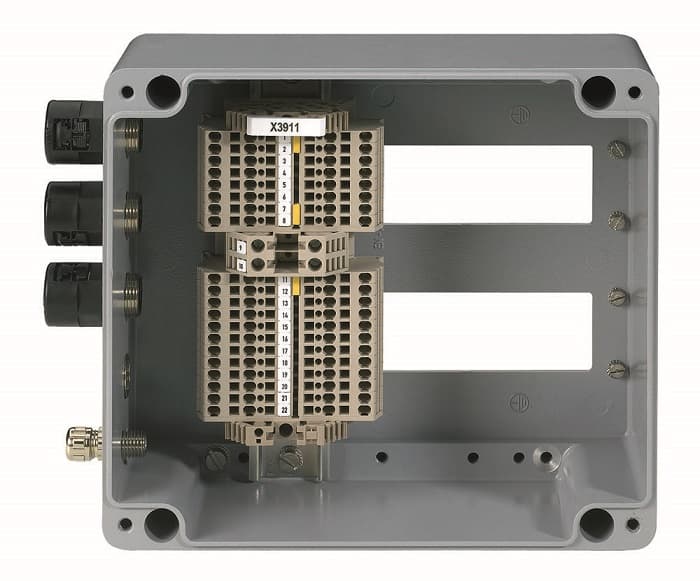

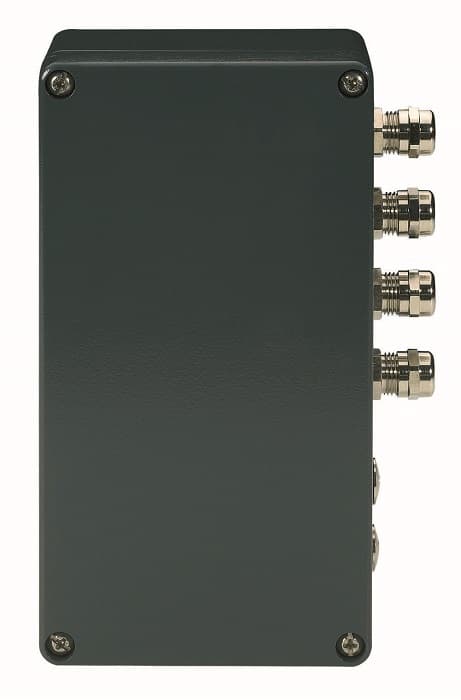

As terminal enclosures they can be assembled according to a modular system with the addition of differing clamps and cable glands. In the measurement and control technology market they are often used for encapsulating sensors. Additionally they serve as junction boxes for cables and lines or take on the job of protecting highly sensitive electronics against water, dirt and dust.


0101100100	MBA 504530	50 mm	45 mm	30 mm	Request
0101100200	MBA 606030	58 mm	64 mm	34 mm	Request
0101100300	MBA 606045	58 mm	64 mm	45 mm	Request
0101100400	MBA 906030	98 mm	64 mm	35 mm	Request
0101100500	MBA 906045	98 mm	64 mm	45 mm	Request
0101100600	MBA 156030	150 mm	64 mm	34 mm	Request
0101100700	MBA 156045	150 mm	64 mm	45 mm	Request
0101100900	MBA 708055	75 mm	80 mm	57 mm	Request
0101100990	MBA 708065	75 mm	80 mm	65 mm	Request
0101101100	MBA 128055	125 mm	80 mm	57 mm	Request
0101101200	MBA 128012	125 mm	80 mm	125 mm	Request
0101101300	MBA 178055	175 mm	80 mm	57 mm	Request
0101101400	MBA 258050	250 mm	80 mm	57 mm	Request
0101101500	MBA 258065	250 mm	80 mm	65 mm	Request
0101105500	MBA 101080	100 mm	100 mm	80 mm	Request
0101106500	MBA 161080	160 mm	100 mm	80 mm	Request
0101106600	MBA 201080	200 mm	100 mm	80 mm	Request
0101101600	MBA 121265	122 mm	120 mm	65 mm	Request
0101101700	MBA 121275	122 mm	120 mm	75 mm	Request
0101101800	MBA 121280	122 mm	120 mm	80 mm	Request
0101101900	MBA 121290	122 mm	120 mm	90 mm	Request
0101102000	MBA 221265	220 mm	120 mm	65 mm	Request
0101102100	MBA 221275	220 mm	120 mm	75 mm	Request
0101102200	MBA 221280	220 mm	120 mm	80 mm	Request
0101102300	MBA 221290	220 mm	120 mm	90 mm	Request
0101102400	MBA 361280	360 mm	122 mm	80 mm	Request
0101104500	MBA 141490	140 mm	140 mm	90 mm	Request
0101108500	MBA 201490	200 mm	140 mm	90 mm	Request
0101107500	MBA 181490	180 mm	143 mm	90 mm	Request
0101102500	MBA 161690	160 mm	160 mm	90 mm	Request
0101104000	MBA 261665	260 mm	160 mm	65 mm	Request
0101102600	MBA 261690	260 mm	160 mm	90 mm	Request
0101102800	MBA 361690	360 mm	160 mm	90 mm	Request
0101102900	MBA 561690	560 mm	160 mm	90 mm	Request
0101108000	MBA 181810	180 mm	180 mm	100 mm	Request
0101108100	MBA 281810	280 mm	180 mm	100 mm	Request
0101103000	MBA 202311	200 mm	230 mm	110 mm	Request
0101104100	MBA 202318	200 mm	230 mm	180 mm	Request
0101103100	MBA 282311	280 mm	230 mm	110 mm	Request
0101103202	MBA 332311	330 mm	230 mm	110 mm	Request
0101103300	MBA 332318	330 mm	230 mm	180 mm	Request
0101103400	MBA 402311	400 mm	230 mm	110 mm	Request
0101103700	MBA 602311	600 mm	230 mm	110 mm	Request
0101103500	MBA 403111	400 mm	310 mm	110 mm	Request
0101103600	MBA 403118	400 mm	310 mm	180 mm	Request
0101103800	MBA 603111	600 mm	310 mm	110 mm	Request
0101103900	MBA 603118	600 mm	310 mm	180 mm	Request
