Profile-Enclosures DELTA-BOX

Material screws: Steel

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: No

Surface coating: Wet painting

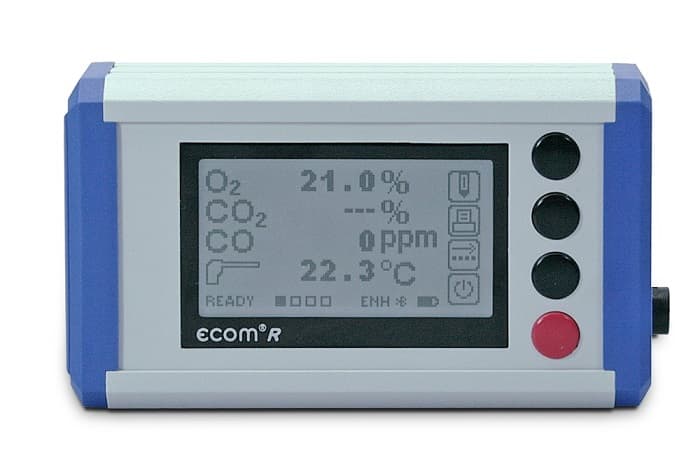

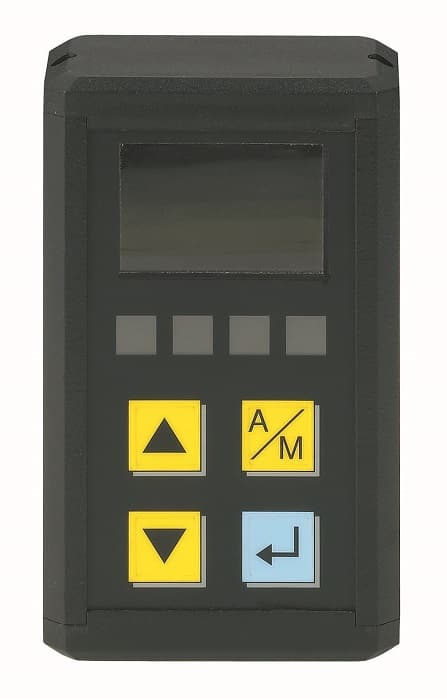

Delta-Box-Enclosures are made of aluminium profile and unite a compact and nicely shaped design with extremely good stability.

The range can be used universally and consists of seven profile sizes of which the length can be individually adapted.

Groove guides in the base allow convenient assembly of PCBs in European card format or other electronic components.

The installation of a battery compartment MB 92 (1x9-V or 2xMignon) is possible in the end cap.

The aluminium front plates are 2 mm thick and silver anodised. The end caps are made of impact-proof ABS.

Article no.	Type	Length	Width	Height
1501100100	DELTA-BOX 080	84 mm	80 mm	40 mm
1501100200	DELTA-BOX 0130	134 mm	80 mm	40 mm
1501100300	DELTA-BOX 0180	184 mm	80 mm	40 mm
1501100400	DELTA-BOX 0210	214 mm	80 mm	40 mm
1501100500	DELTA-BOX 1130	134 mm	106 mm	50 mm
1501102100	DELTA-BOX 5130	134 mm	106 mm	70 mm
1501100600	DELTA-BOX 1180	184 mm	106 mm	50 mm
1501102200	DELTA-BOX 5180	184 mm	106 mm	70 mm
1501100700	DELTA-BOX 1210	214 mm	106 mm	50 mm
1501102300	DELTA-BOX 5210	214 mm	106 mm	70 mm
1501100800	DELTA-BOX 1300	300 mm	106 mm	50 mm
1501102400	DELTA-BOX 5300	300 mm	106 mm	70 mm
1501101300	DELTA-BOX 3130	134 mm	120 mm	35 mm
1501101400	DELTA-BOX 3180	184 mm	120 mm	35 mm
1501101500	DELTA-BOX 3210	214 mm	120 mm	35 mm
1501101600	DELTA-BOX 3300	300 mm	120 mm	35 mm
1501100900	DELTA-BOX 2130	134 mm	166 mm	35 mm
1501101700	DELTA-BOX 4130	134 mm	166 mm	50 mm
1501102500	DELTA-BOX 6130	134 mm	166 mm	70 mm
1501101000	DELTA-BOX 2180	184 mm	166 mm	35 mm
1501101800	DELTA-BOX 4180	184 mm	166 mm	50 mm
1501102600	DELTA-BOX 6180	184 mm	166 mm	70 mm
1501101100	DELTA-BOX 2210	214 mm	166 mm	35 mm
1501101900	DELTA-BOX 4210	214 mm	166 mm	50 mm
1501102700	DELTA-BOX 6210	214 mm	166 mm	70 mm
1501101200	DELTA-BOX 2300	300 mm	166 mm	35 mm
1501102000	DELTA-BOX 4300	300 mm	166 mm	50 mm
1501102800	DELTA-BOX 6300	300 mm	166 mm	70 mm
