ABS-Enclosures / Film-Recess

Material cover: ABS

Material base: ABS

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: No

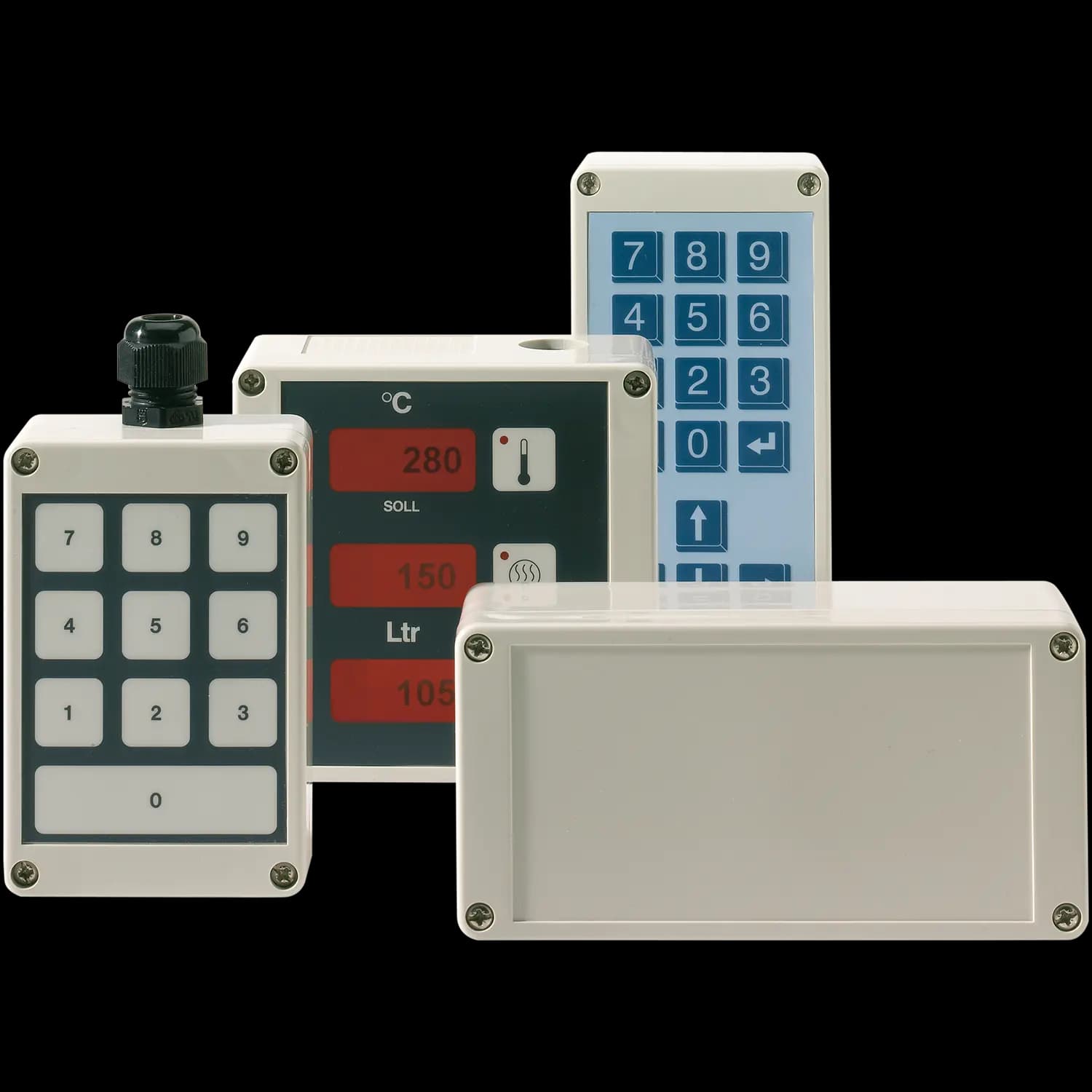

ABS Enclosures with film recess offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.

Our enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing or membrane keyboards.

Article no.	Type	Length	Width	Height
0421101600	MBT 128040 FT	120 mm	80 mm	40 mm
0421102100	MBT 128055 FT	120 mm	80 mm	55 mm
0421102340	MBT 128065 FT	120 mm	80 mm	65 mm
0421102900	MBT 128085 FT	120 mm	80 mm	85 mm
0403103610	MBT 168035 FT	160 mm	80 mm	37 mm
0421103500	MBT 168055 FT	160 mm	80 mm	55 mm
0421103800	MBT 168085 FT	160 mm	80 mm	85 mm
0421104200	MBT 121255 FT	120 mm	120 mm	55 mm
0421104600	MBT 121285 FT	120 mm	120 mm	85 mm
0421105600	MBT 201255 FT	200 mm	120 mm	55 mm
0421105900	MBT 201275 FT	200 mm	120 mm	75 mm
0421106400	MBT 201580 FT	200 mm	150 mm	80 mm
0401106550	MBT 201510 FT	200 mm	150 mm	100 mm
0401108100	MBT 341555 FT	340 mm	150 mm	55 mm
0401108400	MBT 341510 FT	340 mm	150 mm	100 mm
