ABS-Enclosures MBT / Grey Cover | MULTI-BOX GmbH

Start

Products

ABS-Enclosures MBT / Grey Cover

ABS-Enclosures MBT / Grey Cover

Material cover: ABS

Material base: ABS

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: No

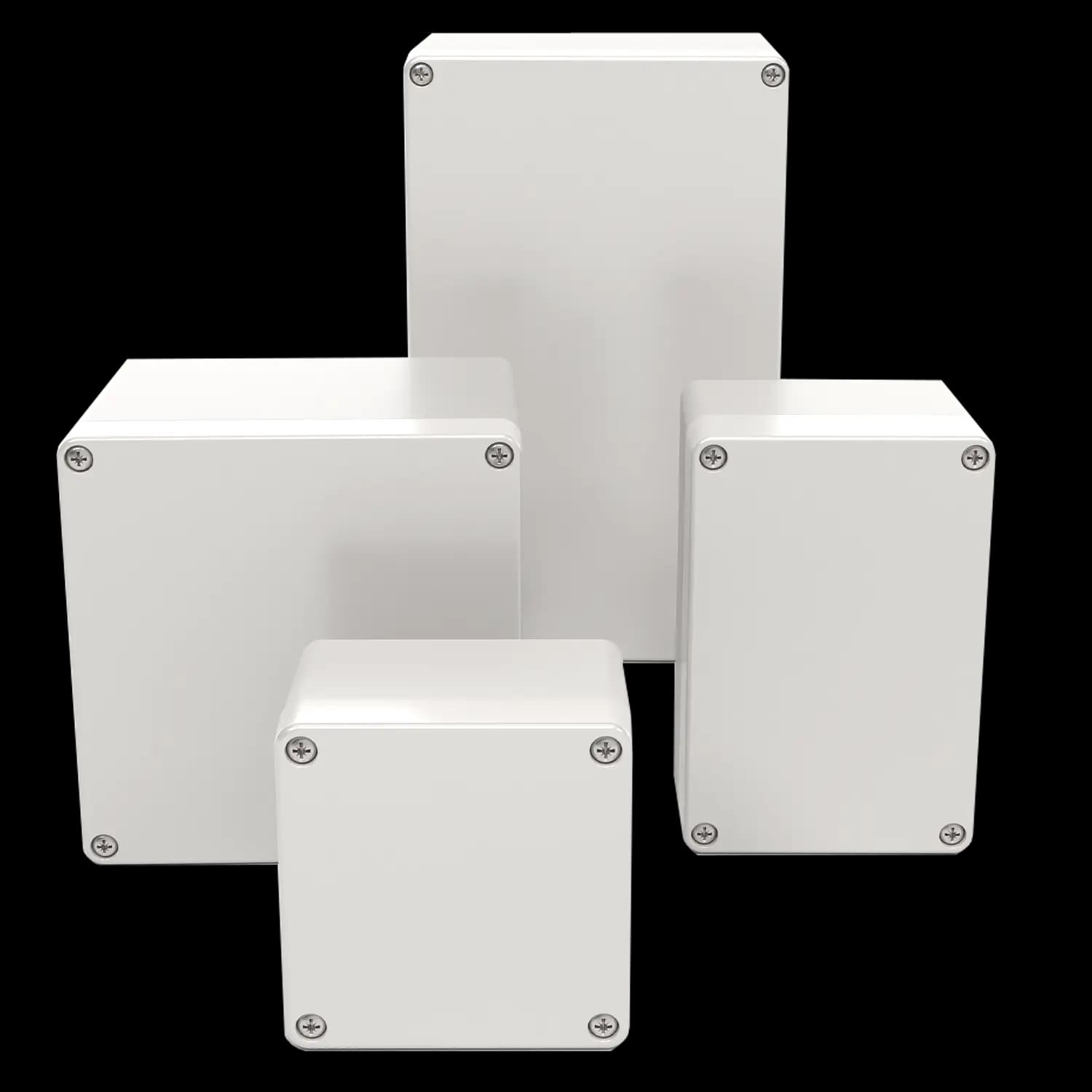

MBT Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.

The MBT Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).

Article no.	Type	Length	Width	Height
0401100100	MBT 050504	52 mm	50 mm	35 mm
0401100200	MBT 060504	65 mm	50 mm	35 mm
0401100400	MBT 060505	65 mm	50 mm	45 mm
0401100500	MBT 060545	65 mm	50 mm	45 mm
0401100600	MBT 060555	65 mm	50 mm	55 mm
0401100700	MBT 060603	58 mm	64 mm	37 mm
0401100800	MBT 090603	98 mm	64 mm	37 mm
0401101000	MBT 080805	82 mm	80 mm	55 mm
0401101200	MBT 080807	82 mm	80 mm	65 mm
0401101300	MBT 080809	82 mm	80 mm	85 mm
0401101400	MBT 080810	82 mm	80 mm	95 mm
0401101500	MBT 128035	120 mm	80 mm	36 mm
0401101600	MBT 128040	120 mm	80 mm	41 mm
0401101700	MBT 128045	120 mm	80 mm	47 mm
0401101900	MBT 128050	120 mm	80 mm	50 mm
0401102100	MBT 128055	120 mm	80 mm	55 mm
0401102300	MBT 128060	120 mm	80 mm	60 mm
0401102330	MBT 128060	120 mm	80 mm	60 mm
0401102340	MBT 128065	120 mm	80 mm	65 mm
0401102500	MBT 128070	120 mm	80 mm	70 mm
0401102550	MBT 128070	120 mm	80 mm	70 mm
0401102700	MBT 128080	120 mm	80 mm	80 mm
0401102750	MBT 128080	120 mm	80 mm	80 mm
0401102900	MBT 128085	120 mm	80 mm	85 mm
0401103100	MBT 128090	120 mm	80 mm	90 mm
0401103300	MBT 128010	120 mm	80 mm	100 mm
0401103610	MBT 168035	160 mm	80 mm	37 mm
0401103500	MBT 168055	160 mm	80 mm	55 mm
0401103700	MBT 168060	160 mm	80 mm	60 mm
0401103800	MBT 168085	160 mm	80 mm	85 mm
0401103900	MBT 168090	160 mm	80 mm	90 mm
0401104000	MBT 208055	200 mm	80 mm	55 mm
0401109700	MBT 208011	200 mm	80 mm	110 mm
0401107510	MBT 248055	240 mm	80 mm	55 mm
0401104200	MBT 121255	122 mm	120 mm	55 mm
0401104400	MBT 121275	122 mm	120 mm	75 mm
0401104600	MBT 121285	122 mm	120 mm	85 mm
0401104800	MBT 121211	122 mm	120 mm	105 mm
0401104900	MBT 161255	160 mm	120 mm	55 mm
0401105000	MBT 161270	160 mm	120 mm	70 mm
0401105100	MBT 161275	160 mm	120 mm	75 mm
0401105200	MBT 161290	160 mm	120 mm	90 mm
0401105300	MBT 161212	160 mm	120 mm	120 mm
0401105400	MBT 161214	160 mm	120 mm	140 mm
0401105600	MBT 201255	200 mm	120 mm	55 mm
0401105700	MBT 201270	200 mm	120 mm	70 mm
0401105900	MBT 201275	200 mm	120 mm	75 mm
0401106100	MBT 201290	200 mm	120 mm	90 mm
0401106900	MBT 241270	240 mm	120 mm	70 mm
0401106800	MBT 241210	240 mm	120 mm	100 mm
0401106200	MBT 201555	200 mm	150 mm	55 mm
0401106300	MBT 201575	200 mm	150 mm	75 mm
0401106400	MBT 201580	200 mm	150 mm	80 mm
0401106500	MBT 201510	200 mm	150 mm	100 mm
0401106600	MBT 201511	200 mm	150 mm	105 mm
0401106700	MBT 201513	200 mm	150 mm	125 mm
0401108200	MBT 341555	340 mm	150 mm	55 mm
0401108300	MBT 341580	340 mm	150 mm	75 mm
0401108500	MBT 341510	340 mm	150 mm	100 mm
0401108600	MBT 341512	340 mm	150 mm	120 mm
0401105500	MBT 161665	160 mm	160 mm	65 mm
0401107030	MBT 241670	240 mm	160 mm	70 mm
0401107000	MBT 241690	240 mm	160 mm	90 mm
0401107100	MBT 241612	240 mm	160 mm	120 mm
0401107200	MBT 251655	250 mm	160 mm	55 mm
0401107300	MBT 251685	250 mm	160 mm	85 mm
0401107400	MBT 251690	250 mm	160 mm	90 mm
0401107500	MBT 251611	250 mm	160 mm	115 mm
0401107600	MBT 251612	250 mm	160 mm	120 mm
0401107700	MBT 251615	250 mm	160 mm	150 mm
0401108700	MBT 362015	360 mm	200 mm	150 mm
0401107800	MBT 302365	300 mm	230 mm	65 mm
0401107900	MBT 302385	300 mm	230 mm	85 mm
0401108000	MBT 302311	300 mm	230 mm	110 mm
