DUO-BOX Enclosures

Material cover: Polycarbonate

Material base: Polycarbonate

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

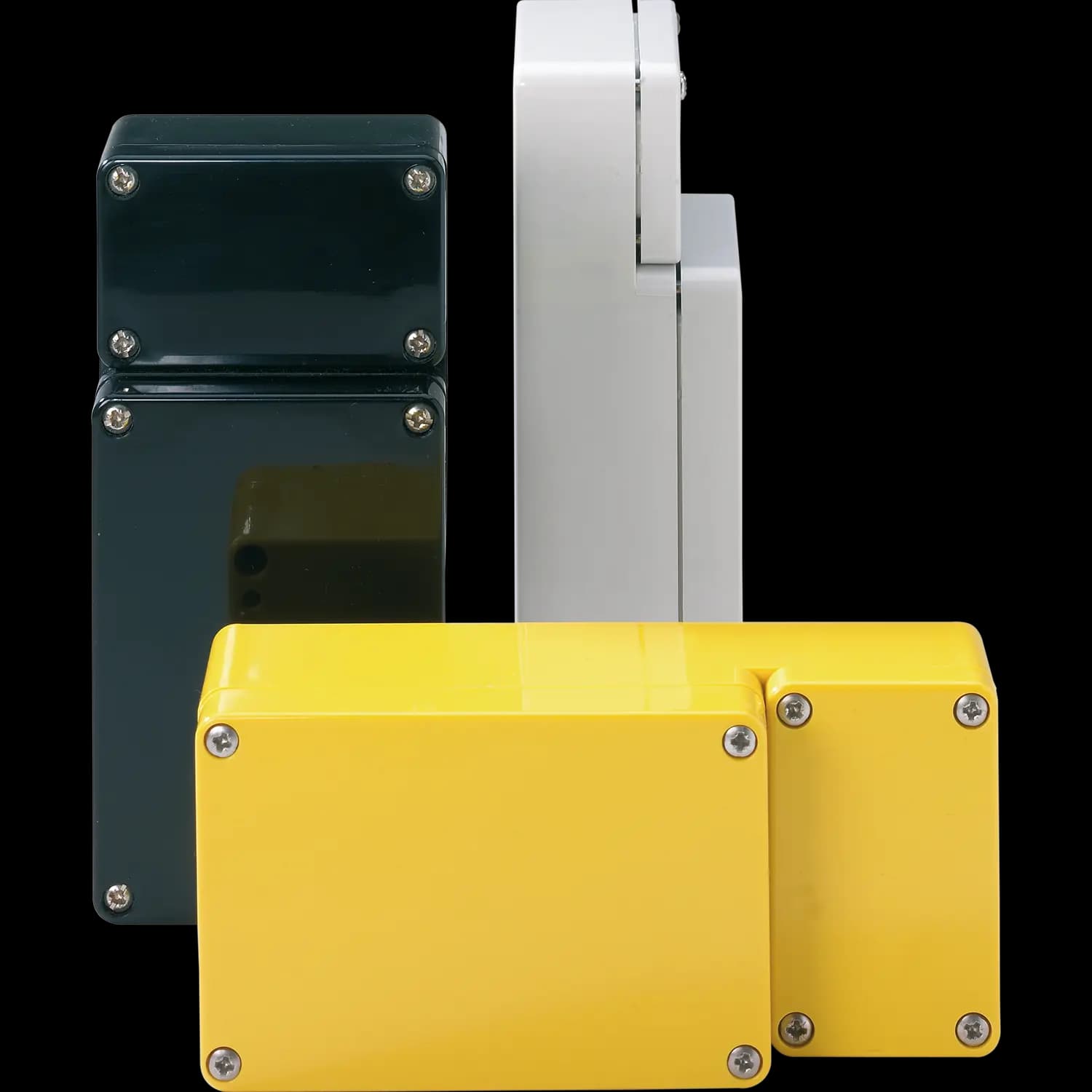

The Duo-Box is an enclosure with two functional areas. Electronic components can be separated from electrical connection technology for example.

The enclosures are available in Polycarbonate or ABS.

As an option the Duo-Box is also available with a transparent cover (K).

Article no.	Type	Length	Width	Height
0301108800	MBM 178055	170 mm	80 mm	55 mm
0401108800	MBT 178055	170 mm	80 mm	55 mm
0402108800	MBT 178055K	170 mm	80 mm	55 mm
0302108800	MBM 178055K	170 mm	80 mm	55 mm
0301108900	MBM 178060	170 mm	80 mm	60 mm
0401108900	MBT 178060	170 mm	80 mm	60 mm
0402108900	MBT 178060K	170 mm	80 mm	60 mm
0302108900	MBM 178060K	170 mm	80 mm	60 mm
0301109000	MBM 178070	170 mm	80 mm	70 mm
0401109000	MBT 178070	170 mm	80 mm	70 mm
0402109000	MBT 178070K	170 mm	80 mm	70 mm
0302109000	MBM 178070K	170 mm	80 mm	70 mm
