MBI BK-M Knockouts / Black Cover

MBI BK-M Knockouts / Black Cover

polygon

Material cover: Polycarbonate GF10

polygon

Material base: Polycarbonate GF10

polygon

Material sealing: Polyurethane

polygon

Material screws: Plastic

polygon

Silicone-free: Yes

polygon

Halogen-free: Yes

polygon

UV-resistant: Yes

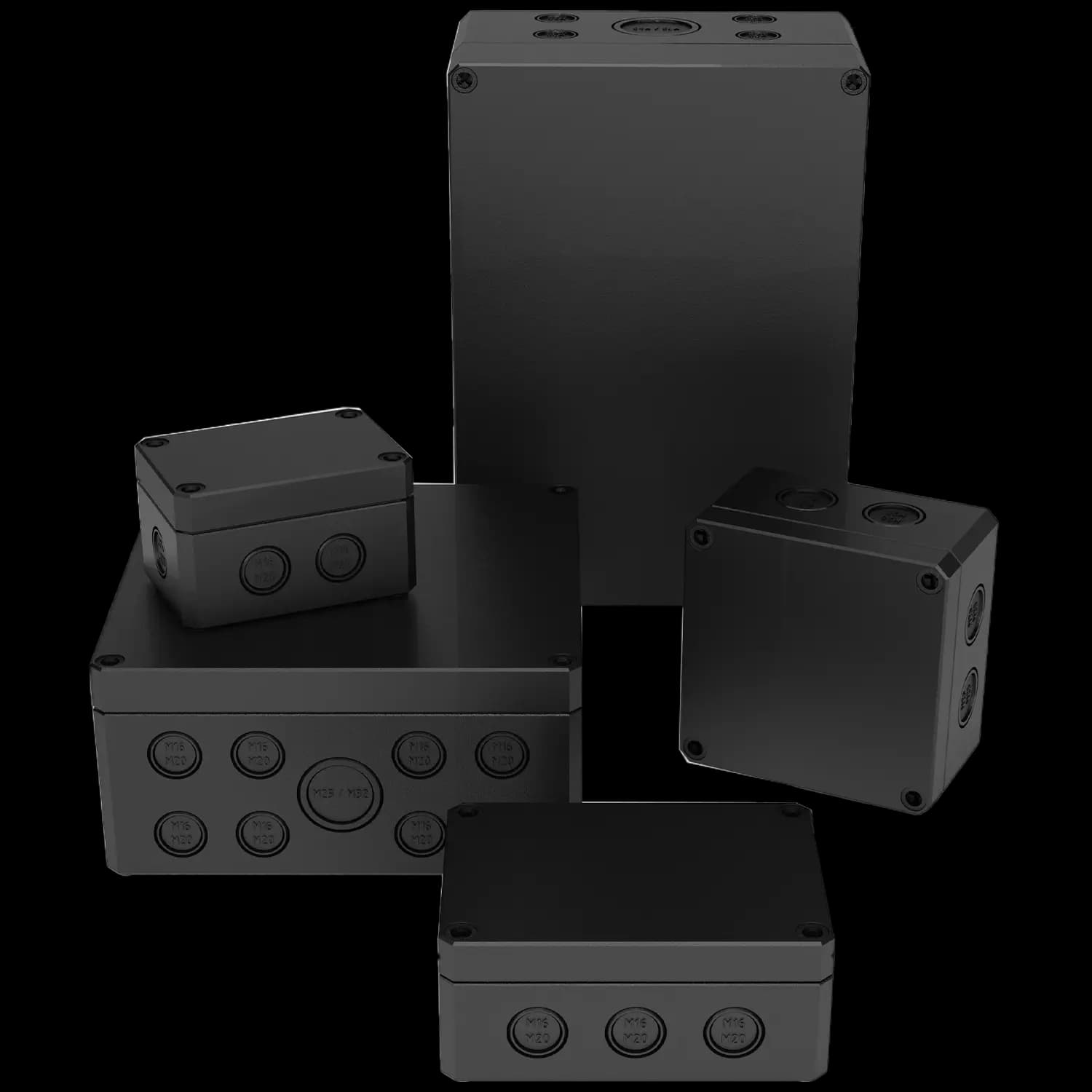

MBI BLACK - THE HIDDEN CHAMPION - Remarkably invisible.

MBI-BLACK industrial enclosures are the perfect combination of discreet presence, modern design and excellent technical performance.

Enclosure bases are designed with metric pre-formed knockouts on all four sides. These can be opened for cable entries. Covers are supplied in black colour.

Their entirely black design integrates them seamlessly into industrial surroundings and enables a discreet, almost invisible installation in factory halls, control cabinets, camera systems or shaft installations. Thanks to their design in elegant black color and clean shapes MBI-BLACK enclosures have a modern appearance.

In addition, they reliably meet the high technical requirements of industrial installation technology. MBI enclosures are made of glass fibre reinforced polycarbonate. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. Cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance corresponds to IK08, making the MBI BLACK enclosures ideally suitable for use in industrial and outdoor applications.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.

MBI BLACK enclosures offer a variety of mounting points for direct fixation of components into the base. Self-tapping plastic screws for assembly are included in the scope of delivery.

Article no.
Type
Length
Width
Height
PDF
DXF
3D

MBI-PC BK 090706 M

94 mm

65 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-PC BK 111107 M

110 mm

110 mm

66 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-PC BK 130906 M

130 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-PC BK 180906 M

180 mm

94 mm

57 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-PC BK 181309 M

180 mm

130 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-PC BK 181809 M

182 mm

180 mm

90 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-PC BK 251811 M

254 mm

180 mm

111 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-L-PC BK 302013 M

300 mm

200 mm

130 mm

pdf document image with link
dxf document image with link
3d document image with link

MBI-L-PC BK 403019 M

400 mm

300 mm

185 mm

pdf document image with link
dxf document image with link
3d document image with link
