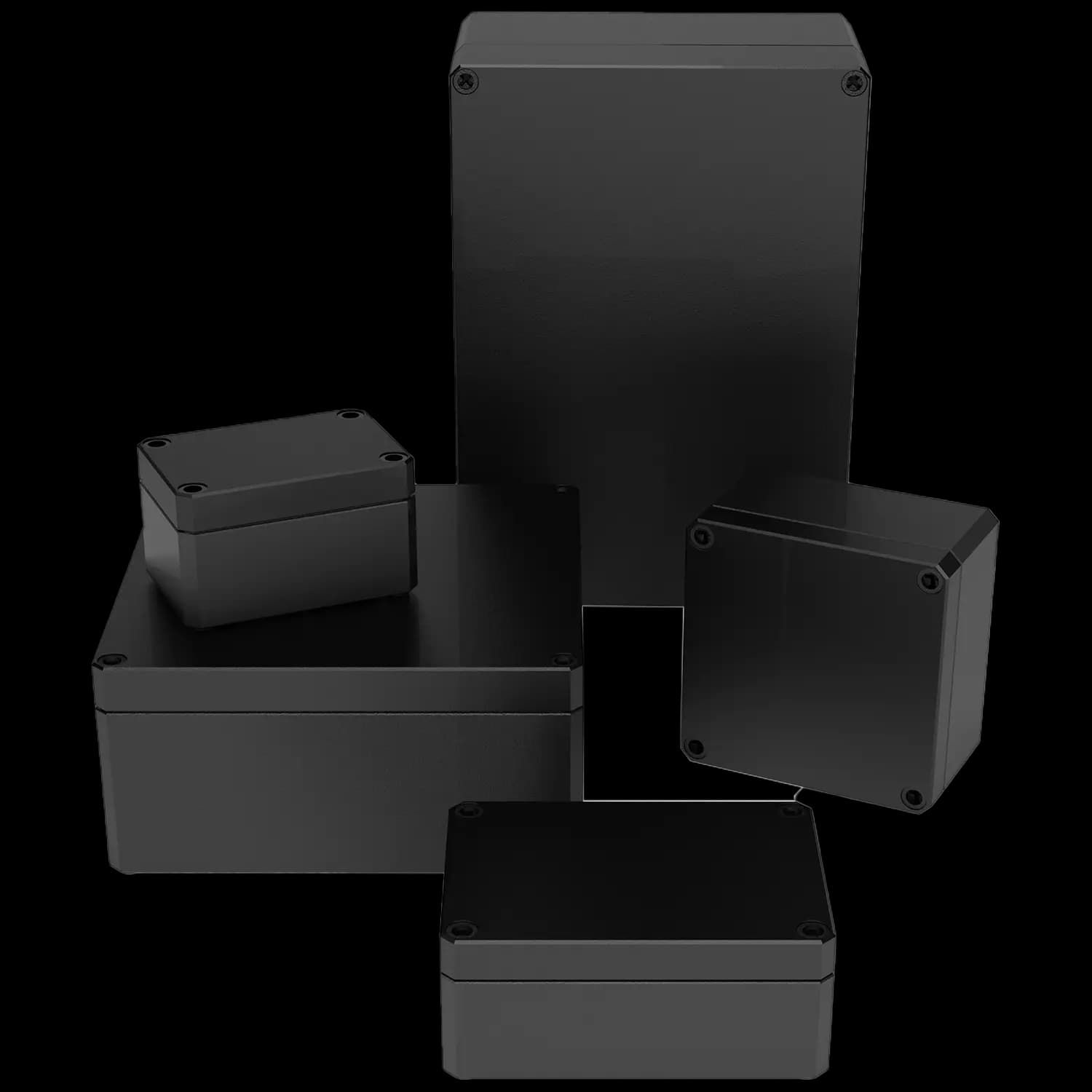

MBI BLACK - THE HIDDEN CHAMPION - Remarkably invisible.

MBI-BLACK industrial enclosures are the perfect combination of discreet presence, modern design and excellent technical performance.

Bases are designed with plane side walls. These can be mechanically processed according to customer requirements. Covers are supplied in black colour.

Their entirely black design integrates them seamlessly into industrial surroundings and enables a discreet, almost invisible installation in factory halls, control cabinets, camera systems or shaft installations. Thanks to their design in elegant black color and clean shapes MBI-BLACK enclosures have a modern appearance.

In addition, they reliably meet the high technical requirements of industrial installation technology. MBI BLACK enclosures are made of glass fibre reinforced polycarbonate. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. Cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance corresponds to IK08, making the MBI BLACK enclosures ideally suitable for use in industrial and outdoor applications.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cutouts and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.

MBI BLACK enclosures offer a variety of mounting points for direct fixation of components into the base. Self-tapping plastic screws for assembly are included in the scope of delivery.

MBI BK-O Plain sides / Black Cover

MBI-PC BK 090706 O

MBI-PC BK 111107 O

MBI-PC BK 130906 O

MBI-PC BK 180906 O

MBI-PC BK 181309 O

MBI-PC BK 181809 O

MBI-PC BK 251811 O

MBI-L-PC BK 302013 O

MBI-L-PC BK 403019 O

MBI-L-PC BK 202013 O

MBI-L-PC BK 303019 O

Article no.	Type	Length	Width	Height
0905109760	MBI-PC BK 090706 O	94 mm	65 mm	57 mm
0905103960	MBI-PC BK 130906 O	130 mm	94 mm	57 mm
0905108960	MBI-PC BK 180906 O	180 mm	94 mm	57 mm
0905101170	MBI-PC BK 111107 O	110 mm	110 mm	66 mm
0905108390	MBI-PC BK 181309 O	180 mm	130 mm	90 mm
0905108890	MBI-PC BK 181809 O	182 mm	180 mm	90 mm
0905105810	MBI-PC BK 251811 O	254 mm	180 mm	111 mm
0905102230	MBI-L-PC BK 202013 O	200 mm	200 mm	130 mm
0905103230	MBI-L-PC BK 302013 O	300 mm	200 mm	130 mm
0905103380	MBI-L-PC BK 303019 O	300 mm	300 mm	185 mm
0905104380	MBI-L-PC BK 403019 O	400 mm	300 mm	185 mm

Article no.	Type	Length	Width	Height
0905109760	MBI-PC BK 090706 O	94 mm	65 mm	57 mm
0905103960	MBI-PC BK 130906 O	130 mm	94 mm	57 mm
0905108960	MBI-PC BK 180906 O	180 mm	94 mm	57 mm
0905101170	MBI-PC BK 111107 O	110 mm	110 mm	66 mm
0905108390	MBI-PC BK 181309 O	180 mm	130 mm	90 mm
0905108890	MBI-PC BK 181809 O	182 mm	180 mm	90 mm
0905105810	MBI-PC BK 251811 O	254 mm	180 mm	111 mm
0905102230	MBI-L-PC BK 202013 O	200 mm	200 mm	130 mm
0905103230	MBI-L-PC BK 302013 O	300 mm	200 mm	130 mm
0905103380	MBI-L-PC BK 303019 O	300 mm	300 mm	185 mm
0905104380	MBI-L-PC BK 403019 O	400 mm	300 mm	185 mm

MBI BK-O Plain sides / Black Cover
