Plastic Enclosures - Polycarbonate-Enclosures MBX - Polycarbonate-Enclosures MBX Basic / Clear Cover

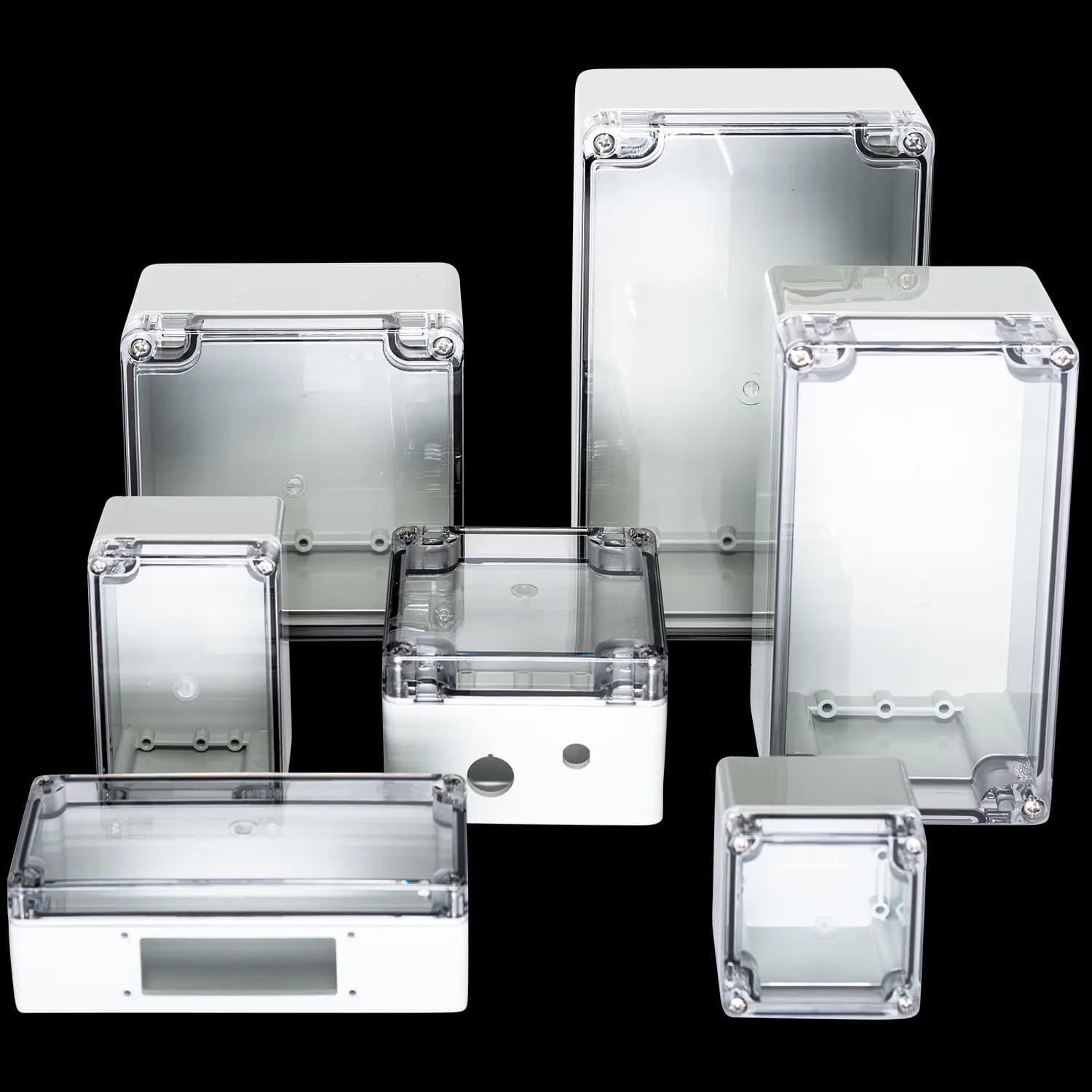

MBX BASIC enclosures with transparent covers made of polycarbonate have been specially designed for industrial applications. The 10 sizes are compatible with the well-known standard aluminum enclosures and represent a cost-effective alternative. The MBX BASIC series is superior to all aluminium enclosures, especially in applications with an increased risk of corrosion. The standard polycarbonate material in grey RAL 7035 is weatherproof and absolutely corrosion-free.
With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP69. The enclosures can easily withstand high pressure water jets, steam jet cleaning or short-term flooding.
- Color description cover: Transparent
- Color description base: Light grey
- RAL-code base: 7035
- Material cover: Polycarbonate
- Material base: Polycarbonate
- Material sealing: Polyurethane
- Material screws: Stainless Steel V2 A
- UV-resistant
- Permanent operating temperature max. (°C): 100
- Permanent operating temperature min. (°C): -40
- Suitable for outdoor use
- Suitable for indoor use
- Protection class IP : 69, 66
- Impact resistance IK : 08
- Flame retardancy : V2
- Sealing foamed seamless
- Captive cover screws
Just a few clicks to your individual offer
|
ARTNR
Typ
|
Length (mm) | Width (mm) | Height (mm) | |||||
|---|---|---|---|---|---|---|---|---|
|
1004100200
MBX 606030 BK
|
MBX 606030 BK | 58 | 64 | 34 |
|
|
|
Details & Accessories |
|
1004100400
MBX 906030 BK
|
MBX 906030 BK | 98 | 64 | 35 |
|
|
|
Details & Accessories |
|
1004100900
MBX 708055 BK
|
MBX 708055 BK | 75 | 80 | 57 |
|
|
|
Details & Accessories |
|
1004101100
MBX 128055 BK
|
MBX 128055 BK | 125 | 80 | 57 |
|
|
|
Details & Accessories |
|
1004101300
MBX 178055 BK
|
MBX 178055 BK | 175 | 80 | 57 |
|
|
|
Details & Accessories |
|
1004101800
MBX 121280 BK
|
MBX 121280 BK | 122 | 120 | 80 |
|
|
|
Details & Accessories |
|
1004101900
MBX 121290 BK
|
MBX 121290 BK | 122 | 120 | 90 |
|
|
|
Details & Accessories |
|
1004102300
MBX 221290 BK
|
MBX 221290 BK | 220 | 120 | 90 |
|
|
|
Details & Accessories |
|
1004102500
MBX 161690 BK
|
MBX 161690 BK | 160 | 160 | 90 |
|
|
|
Details & Accessories |
|
1004102600
MBX 261690 BK
|
MBX 261690 BK | 260 | 160 | 90 |
|
|
|
Details & Accessories |
