Polycarbonate-Enclosures MBX Basic

Polycarbonate-Enclosures MBX Basic

Material cover: Polycarbonate

Material base: Polycarbonate

Material sealing: Polyurethane

Material screws: Stainless Steel V2 A

Silicone-free: Yes

Halogen-free: Yes

UV-resistant: Yes

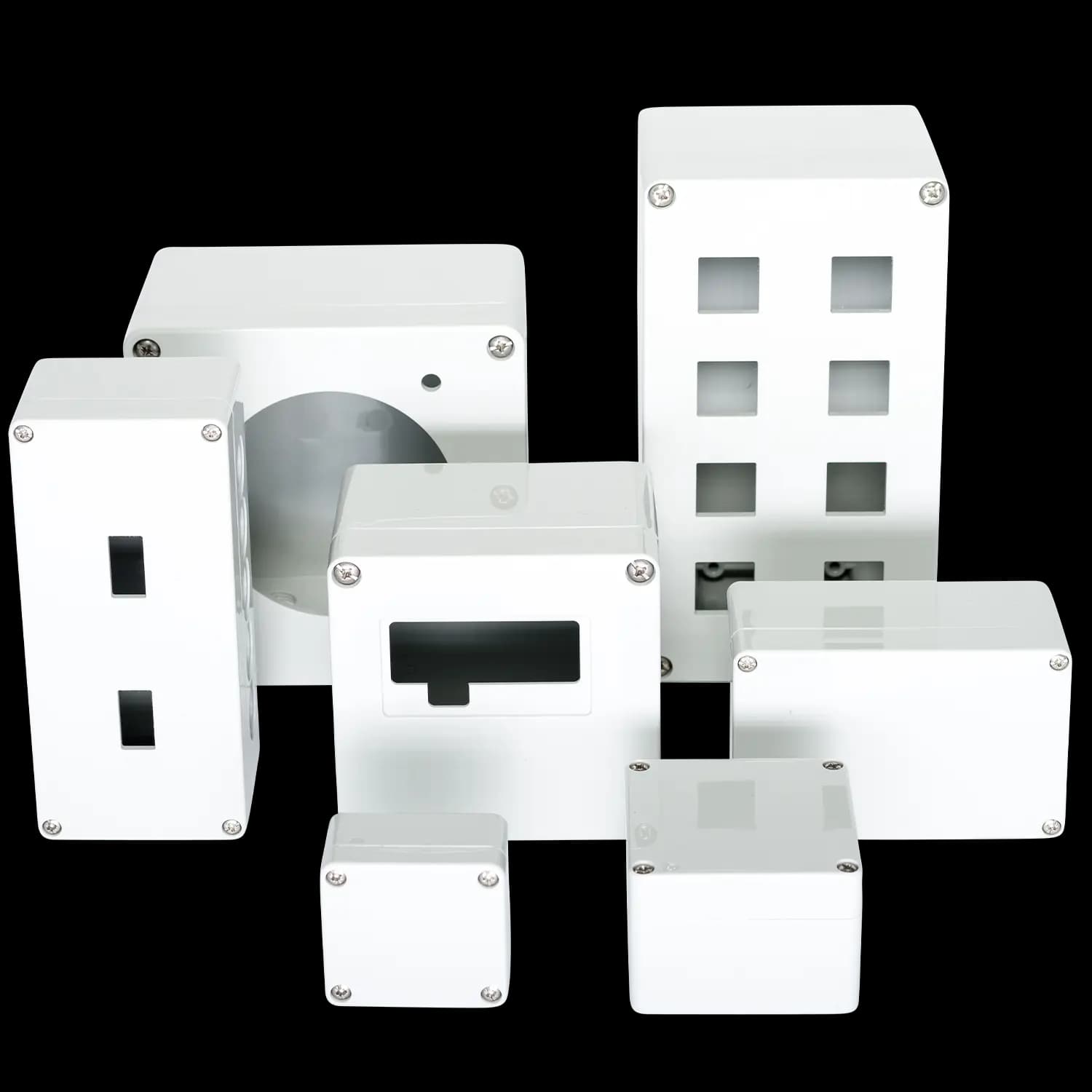

MBX BASIC enclosures made of polycarbonate have been specially designed for industrial applications. The 10 sizes are compatible with the well-known standard aluminum enclosures and represent a cost-effective alternative. The MBX BASIC series is superior to all aluminium enclosures, especially in applications with an increased risk of corrosion. The polycarbonate material in grey RAL 7035 is weatherproof and absolutely corrosion-free.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP69. The enclosures can easily withstand high pressure water jets, steam jet cleaning or short-term flooding.


1003100200	MBX 606030 B	58 mm	64 mm	34 mm	Request
1003100400	MBX 906030 B	98 mm	64 mm	35 mm	Request
1003100900	MBX 708055 B	75 mm	80 mm	57 mm	Request
1003101100	MBX 128055 B	125 mm	80 mm	57 mm	Request
1003101300	MBX 178055 B	175 mm	80 mm	57 mm	Request
1003101800	MBX 121280 B	122 mm	120 mm	80 mm	Request
1003101900	MBX 121290 B	122 mm	120 mm	90 mm	Request
1003102300	MBX 221290 B	220 mm	120 mm	90 mm	Request
1003102500	MBX 161690 B	160 mm	160 mm	90 mm	Request
1003102600	MBX 261690 B	260 mm	160 mm	90 mm	Request


1003100200	MBX 606030 B	58 mm	64 mm	34 mm	Request
1003100400	MBX 906030 B	98 mm	64 mm	35 mm	Request
1003100900	MBX 708055 B	75 mm	80 mm	57 mm	Request
1003101100	MBX 128055 B	125 mm	80 mm	57 mm	Request
1003101300	MBX 178055 B	175 mm	80 mm	57 mm	Request
1003101800	MBX 121280 B	122 mm	120 mm	80 mm	Request
1003101900	MBX 121290 B	122 mm	120 mm	90 mm	Request
1003102300	MBX 221290 B	220 mm	120 mm	90 mm	Request
1003102500	MBX 161690 B	160 mm	160 mm	90 mm	Request
1003102600	MBX 261690 B	260 mm	160 mm	90 mm	Request
