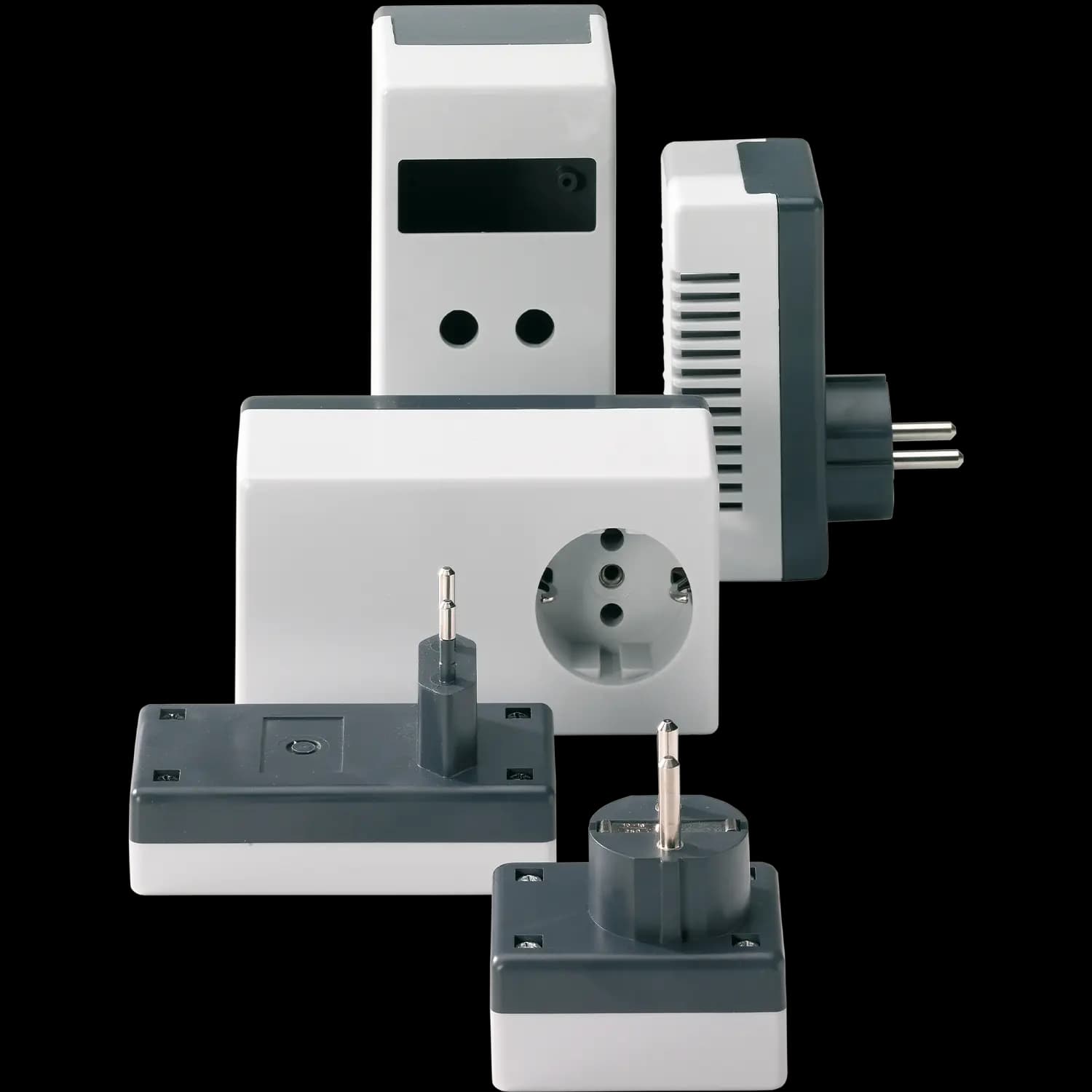

Electronic-Connector-Enclosures with different plug versions made of flame-resistant and impact resistant Polystyrene are frequently used for industrial power packs and chargers.
Plugs in Schuko, European, Swiss and French versions are available as options.
Excellent stability is achieved with the groove and spring sealing and the base parts that open to the side allowing fast and uncomplicated assembly of construction elements.

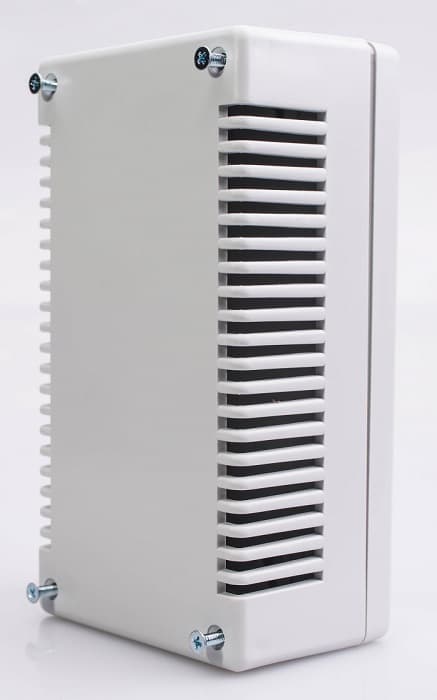

The cover is invisibly screwed on from the underside in the standard version. Fixing from the top side of the cover is also possible as an alternative.
ST* = Plug without earthing
STE* = Schuko plug with earthing
ST CEE* = French plug version with earthing
ST CH* = Swiss plug version with earthing
ST EURO* = Europe plug version without earthing
DO* = Schuko-socket with earthing
DO CEE* = French socket with earthing
ARTNR
Typ
|
Length (mm) | Width (mm) | Height (mm) | |||||
---|---|---|---|---|---|---|---|---|
0601100300
MBPO 655030 STE CEE
|
MBPO 655030 STE CEE | 65 | 50 | 30 |
![]() |
![]() |
![]() |
Details & Accessories |
0601100400
MBPO 655045 STE CEE
|
MBPO 655045 STE CEE | 65 | 50 | 45 |
![]() |
![]() |
![]() |
Details & Accessories |
0601100700
MBPO 105025 ST
|
MBPO 105025 ST | 100 | 50 | 25 |
![]() |
![]() |
![]() |
Details & Accessories |
0601100800
MBPO 105025 STE
|
MBPO 105025 STE | 100 | 50 | 25 |
![]() |
![]() |
![]() |
Details & Accessories |
0601100900
MBPO 105025 STEURO
|
MBPO 105025 STEURO | 100 | 50 | 25 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101000
MBPO 105025 STE CH
|
MBPO 105025 STE CH | 100 | 50 | 25 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101100
MBPO 105025 STE CEE
|
MBPO 105025 STE CEE | 100 | 50 | 25 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101200
MBPO 105040 ST
|
MBPO 105040 ST | 100 | 50 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101300
MBPO 105040 STE
|
MBPO 105040 STE | 100 | 50 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101400
MBPO 105040 STEURO
|
MBPO 105040 STEURO | 100 | 50 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101500
MBPO 105040 STE CH
|
MBPO 105040 STE CH | 100 | 50 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101600
MBPO 105040 STE CEE
|
MBPO 105040 STE CEE | 100 | 50 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101700
MBPO 126540 ST
|
MBPO 126540 ST | 120 | 65 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601101800
MBPO 126540 STE
|
MBPO 126540 STE | 120 | 65 | 40 |
![]() |
![]() |
![]() |
Details & Accessories |
0601102000
MBPO 126565 ST
|
MBPO 126565 ST | 120 | 65 | 65 |
![]() |
![]() |
![]() |
Details & Accessories |
0601102100
MBPO 126565 STE
|
MBPO 126565 STE | 120 | 65 | 65 |
![]() |
![]() |
![]() |
Details & Accessories |
0501101400
MBPO 126555 DO
|
MBPO 126555 DO | 120 | 65 | 55 |
![]() |
![]() |
![]() |
Details & Accessories |
0601102300
MBPO 126555 STE DO
|
MBPO 126555 STE DO | 120 | 65 | 55 |
![]() |
![]() |
![]() |
Details & Accessories |
