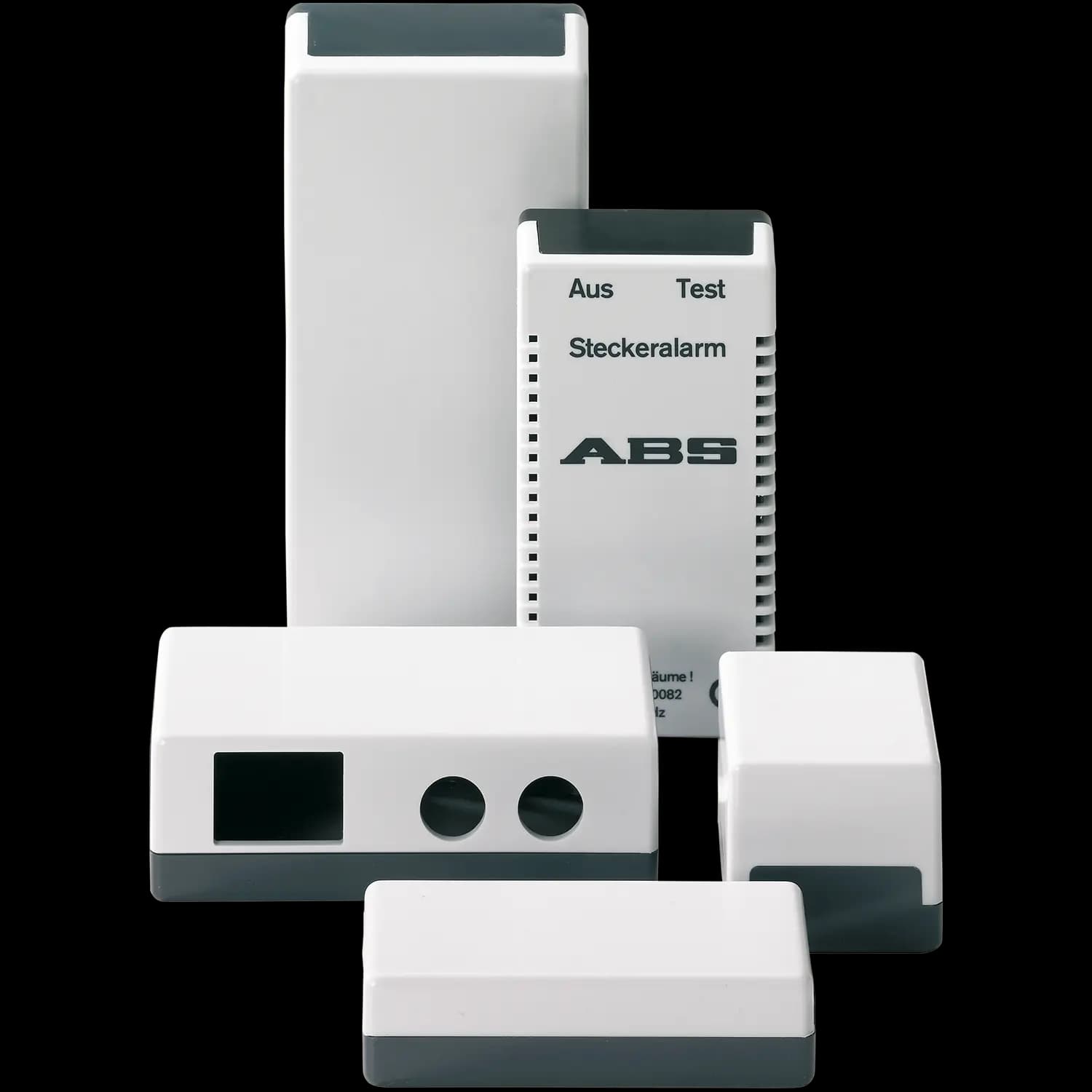

Plastic Enclosures - Electronic-Enclosures MBPO

Electronic-Enclosures MBPO in a shapely design are made of impact resistant Polystyrene and are particularly suited to the installation of small controls and desk units.

Excellent stability is achieved with the groove and spring sealing and the base parts that open to the side allowing fast and uncomplicated assembly of construction elements.

The cover is invisibly screwed on from the underside in the standard version. Fixing from the top side of the cover is also possible as an alternative.


  • RAL-code cover: 7035
  • RAL-code base: 7012
  • Material cover: Polystyrene
  • Material base: Polystyrene
  • Permanent operating temperature max. (°C): 60
  • Permanent operating temperature min. (°C): -20
  • Suitable for indoor use
  • Protection class IP : 20
  • Special colours

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0501101000
MBPO 655030
65 50 30
0501100200
MBPO 655045
65 50 45
0501100300
MBPO 105025
100 50 25
0501100400
MBPO 105040
100 50 40
0501101700
MBPO 105040 LÜ So
100 50 40
0501100500
MBPO 126540
120 65 40
0501101900
MBPO 126540 LÜ So
120 65 40
0501100600
MBPO 126565
120 65 65
0501100700
MBPO 158055
150 80 55
0501102200
MBPO 158055 LÜ So
150 80 55
0501100800
MBPO 158080
150 80 80
0501100900
MBPO 181140
188 110 40
0501100100
MBPO 181160
188 110 60
0501101100
MBPO 181170
188 110 70
0501102600
MBPO 181170 LÜ So
188 110 70
0501101200
MBPO 181110
188 110 100
0501101300
MBPO 181112
188 110 120

Individuality is our standard
With our extensive machinery and a highly motivated team, we transform our standard products into your individual solution.
