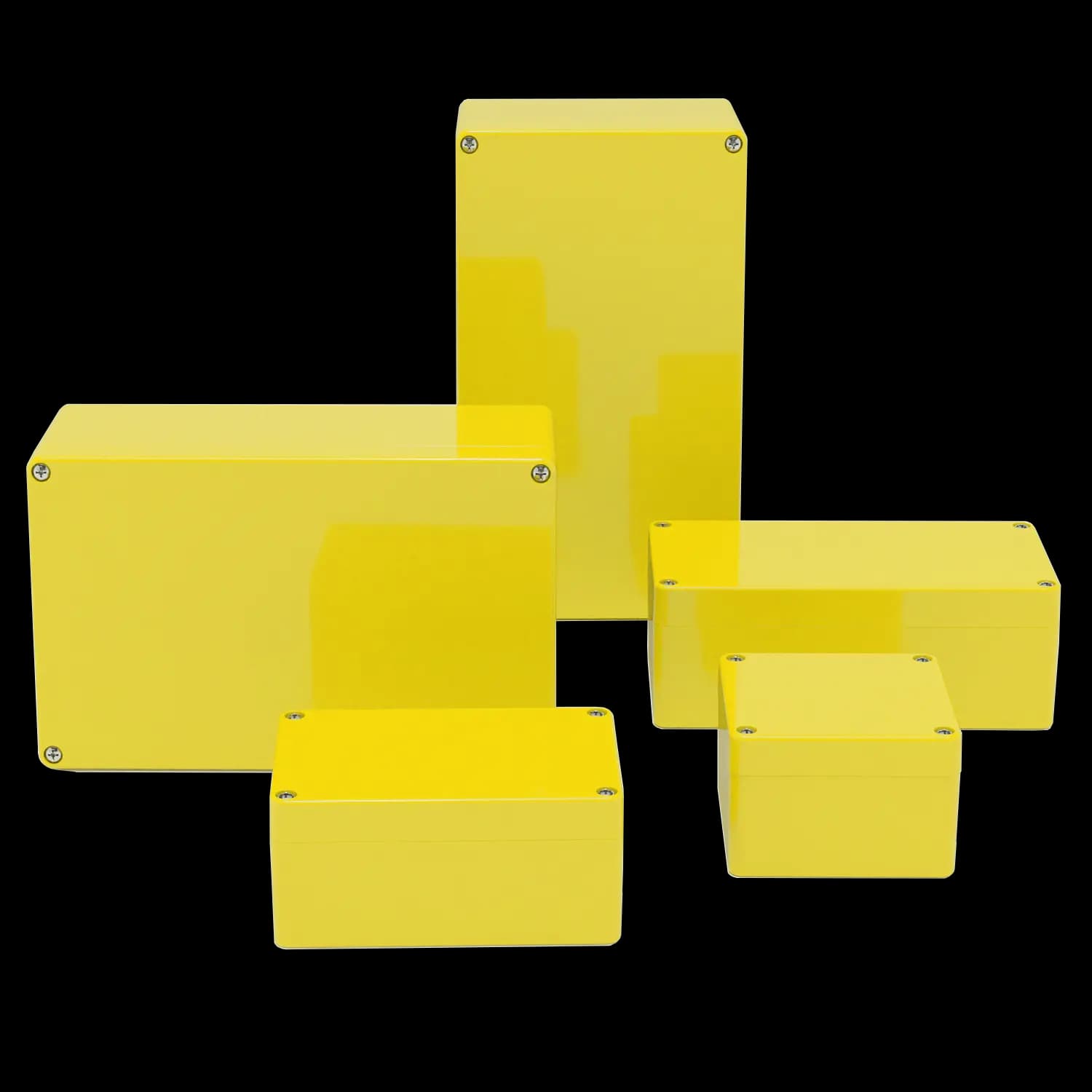

Plastic Enclosures - ABS-Enclosures / Multi-Colour - RAL 1023 / Yellow

It doesn't always need to be grey!



With our Multi-Colour-Enclosures made of ABS, we offer the possibility of designing the colour of your products and visually upgrading them even for small quantities.



Multi-Colour-Enclosures offer excellent properties for "packaging" electronic and electrical components as well as complete control systems in indoor areas.



Our enclosures can be mechanically processed in a number of ways and there are almost no limits to customised surface design with silk screen printing or membrane keyboards.



The enclosures are available with a coloured or transparent cover (K).


  • RAL-code cover: 1023
  • RAL-code base: 1023
  • Material cover: ABS
  • Material base: ABS
  • Material sealing: Polyurethane
  • Material screws: Stainless steel V2 A
  • Permanent operating temperature max. (°C): 80
  • Permanent operating temperature min. (°C): -40
  • Suitable for indoor use
  • Protection class IP : 65
  • Sealing foamed seamless
  • Captive cover screws

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0401101020
MBT 080805
80 80 55
0401102120
MBT 128055
120 80 55
0401104230
MBT 121255
122 120 55
0401103550
MBT 168055
160 80 55
0401104920
MBT 161255
160 120 55
0401105920
MBT 201275
200 120 75

Individuality is our standard
With our extensive machinery and a highly motivated team, we transform our standard products into your individual solution.
Mechanical Processing
Mounting & Assembly
Wiring & Installation
Printing
Special Colours
Testing & Laboratory
Construction & Development
EMC Protection
Special Materials
