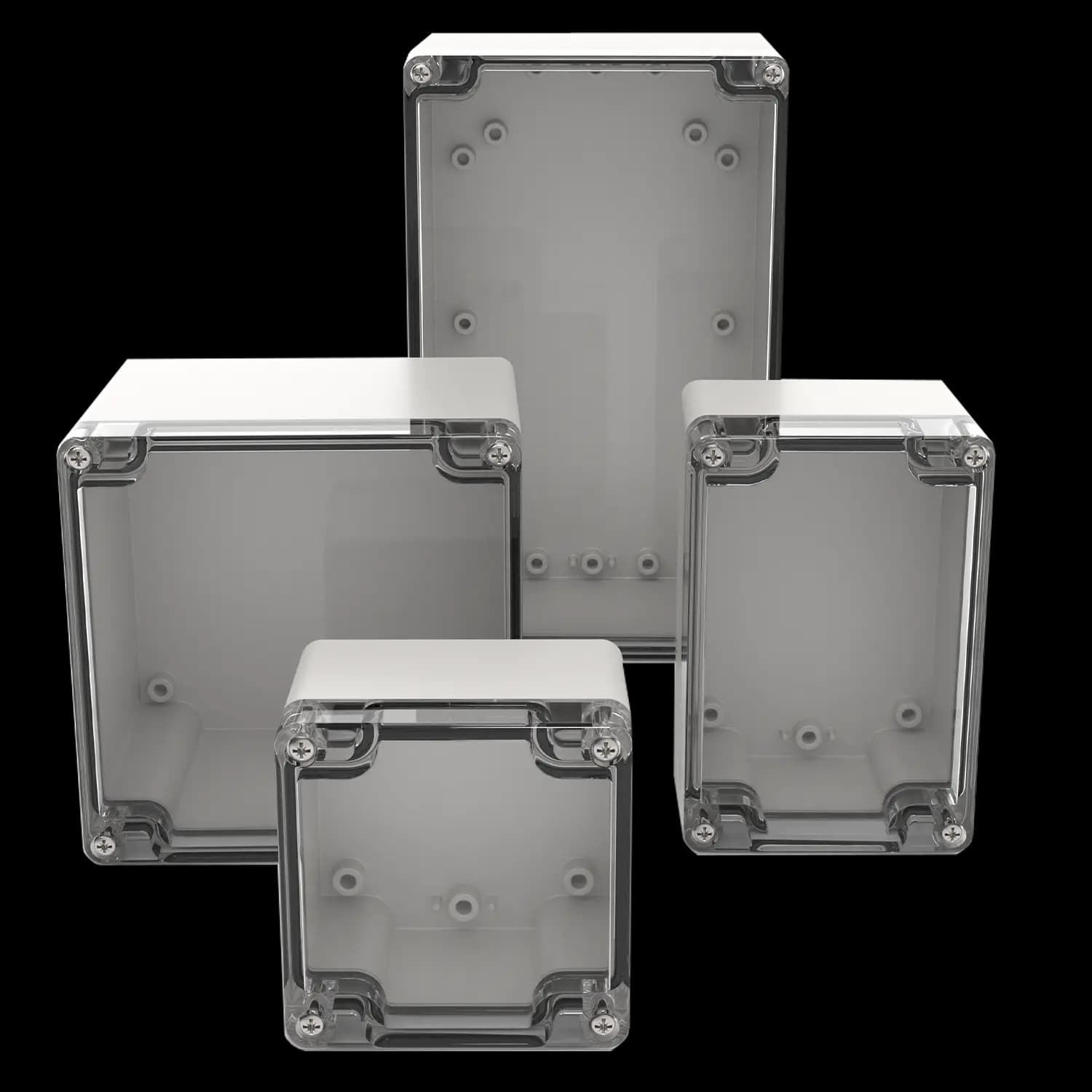

Plastic Enclosures - Polycarbonate-Enclosures MBM - Polycarbonate-Enclosures MBM / Clear Cover

MBM Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems.

Thanks to the high UV-resistance of the material, these enclosures can be used in both indoor and outdoor areas.

The MBM Enclosures are mechanically processed in a number of ways providing almost no limits with customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).


  • Color description cover: Transparent
  • Color description base: Light grey
  • RAL-code base: 7035
  • Material cover: Polycarbonate
  • Material base: Polycarbonate
  • Material sealing: Polyurethane
  • Material screws: Stainless Steel V2 A
  • UV-resistant
  • Permanent operating temperature max. (°C): 100
  • Permanent operating temperature min. (°C): -40
  • Suitable for outdoor use
  • Suitable for indoor use
  • Protection class IP : 65
  • Sealing foamed seamless
  • Captive cover screws
  • Special colours

ARTNR
Typ
Length (mm) Width (mm) Height (mm)
0302100100
MBM 050504K
52 50 35
0302100200
MBM 060504K
65 50 35
0302100400
MBM 060505K
65 50 45
0302100500
MBM 060545K
65 50 45
0302100600
MBM 060555K
65 50 55
0302100800
MBM 090603K
98 64 37
0302101000
MBM 080805K
82 80 55
0302101200
MBM 080807K
82 80 65
0302101300
MBM 080809K
82 80 85
0302101400
MBM 080810K
82 80 95
0302101500
MBM 128035K
120 80 36
0302101600
MBM 128040K
120 80 41
0302101700
MBM 128045K
120 80 47
0302101900
MBM 128050K
120 80 50
0302102100
MBM 128055K
120 80 55
0302102300
MBM 128060K
120 80 60
0302102330
MBM 128060K
120 80 60
0302102340
MBM 128065K
120 80 65
0302102500
MBM 128070K
120 80 70
0302102550
MBM 128070K
120 80 70
0302102700
MBM 128080K
120 80 80
0302102750
MBM 128080K
120 80 80
0302102900
MBM 128085K
120 80 85
0302103100
MBM 128090K
120 80 90
0302103300
MBM 128010K
120 80 100
0302103500
MBM 168055K
160 80 55
0302103700
MBM 168060K
160 80 60
0302103800
MBM 168085K
160 80 85
0302103900
MBM 168090K
160 80 90
0302104100
MBM 121255K
122 120 55
0302104400
MBM 121275K
122 120 75
0302104600
MBM 121285K
122 120 85
0302104800
MBM 121211K
122 120 105
0302104900
MBM 161255K
160 120 55
0302105000
MBM 161270K
160 120 70
0302105100
MBM 161275K
160 120 75
0302105200
MBM 161290K
160 120 90
0302105300
MBM 161212K
160 120 120
0302105400
MBM 161214K
160 120 140
0302105500
MBM 161665K
160 160 65
0302104000
MBM 208055K
200 80 55
0302105600
MBM 201255K
200 120 55
0302105700
MBM 201270K
200 120 70
0302105900
MBM 201275K
200 120 75
0302106100
MBM 201290K
200 120 90
0302106200
MBM 201555K
200 150 55
0302106300
MBM 201575K
200 150 75
0302106400
MBM 201580K
200 150 80
0302106500
MBM 201510K
200 150 100
0302106600
MBM 201511K
200 150 105
0302106700
MBM 201513K
200 150 125
0302106800
MBM 241210K
240 120 100
0302106900
MBM 241270K
240 120 70
0302107000
MBM 241690K
240 160 90
0302107100
MBM 241612K
240 160 120
0302107200
MBM 251655K
250 160 55
0302107300
MBM 251685K
250 160 85
0302107400
MBM 251690K
250 160 90
0302107500
MBM 251611K
250 160 115
0302107600
MBM 251612K
250 160 120
0302107700
MBM 251615K
250 160 150
0302107800
MBM 302365K
300 230 65
0302107900
MBM 302385K
300 230 85
0302108000
MBM 302311K
300 230 110
0302108200
MBM 341555K
340 150 55
0302108300
MBM 341580K
340 150 75
0302108500
MBM 341510K
340 150 100
0302108600
MBM 341512K
340 150 120
0302108700
MBM 362015K
360 200 150
0302103610
MBM 168035K
160 80 37
0302107030
MBM 241670K
240 160 70
0302107510
MBM 248055K
240 80 55
0302109700
MBM 208011K
200 80 110
